Linear Algebra Review and SciPy Basics

Definitions and notation in this review follow Section 2.2 Vectors and Matrices in Biegler (2010), with the invertibility discussion cross-checked against Lay, Linear Algebra and Its Applications, 3rd ed.

Recommended Links

NumPy Documentation - Main Page
SciPy Documentation - Main Page
SciPy Linear Algebra - Tutorial
SciPy Linear Algebra - API
SciPy Lecture Notes (Especially 1.1 - 1.6 for everyone and 2.1 - 2.2 for advanced users)

Tip: We will mostly use SciPy for linear algebra. (It has more sophisticated capabilities than NumPy.) We will use NumPy if/when SciPy does not offer a specific command.

# Load required Python libraries.
import numpy as np
from scipy import linalg

# Seed the random number generator so this notebook is reproducible
# (Pyomo style guide, section 8).
np.random.seed(0)

Notation used in the references¶

Scalar constants and variables - Greek letters
Vectors - Lower case Roman letters
Matrices - Upper case Roman letters

The notation for lectures will (hopefully) be obvious from context. I sometimes use Greek letters for constants and Roman letters for variables... unless the Greek letters have engineering or scientific meaning.

Matrix Operations¶

For $A\in\mathbb{R}^{n\times m}$ and $B\in\mathbb{R}^{m\times p}$ , the product $C=AB\in\mathbb{R}^{n\times p}$ has entries

C_{ij}=\sum_{k=1}^{m}A_{ik}B_{kj}.

(1)

The inner dimensions must match. The transpose interchanges rows and columns, $(A^\mathsf{T})_{ij}=A_{ji}$ . A square matrix is symmetric when $A=A^\mathsf{T}$ , diagonal when $A_{ij}=0$ for $i\ne j$ , and the identity has $I_{ij}=1$ for $i=j$ and zero otherwise.

# Generate random matrices
n = 2
m = 3

Ao = np.random.rand(n, m)
Bo = np.random.rand(m, n)

print("Ao = ")
print(Ao)
print("\nBo = ")
print(Bo)


# What is the dimension of A*B? Try to answer this without the computer.

# Calculate A*B using Python
print("\nAo*Bo =")
print(Ao.dot(Bo))

Ao =
[[0.5488135  0.71518937 0.60276338]
 [0.54488318 0.4236548  0.64589411]]

Bo =
[[0.43758721 0.891773  ]
 [0.96366276 0.38344152]
 [0.79172504 0.52889492]]

Ao*Bo =
[[1.40657799 1.08244885]
 [1.15806481 0.98996907]]

Activity

Calculate $A_o^{T}$
Create a square matrix and check if it is symmetric
Create a 3x3 identity matrix

# Transpose
print("transpose(Ao) = \n", Ao.transpose(), "\n")

# Create a square matrix. Is it symmetric?

# Identify matrix
print("I = \n", np.identity(3), "\n")

transpose(Ao) =
 [[0.5488135  0.54488318]
 [0.71518937 0.4236548 ]
 [0.60276338 0.64589411]]

I =
 [[1. 0. 0.]
 [0. 1. 0.]
 [0. 0. 1.]]

Determinant¶

For a square matrix $A\in\mathbb{R}^{n\times n}$ , expansion along any row $i$ gives

\det(A)=\sum_{j=1}^{n}(-1)^{i+j}A_{ij}\det(A_{ij}),

(2)

where $A_{ij}$ is the submatrix formed by deleting row $i$ and column $j$ . Useful properties are

\det(AB)=\det(A)\det(B),\qquad \det(A^\mathsf{T})=\det(A),\qquad \det(\alpha A)=\alpha^n\det(A),\qquad \det(I)=1.

(3)

The exponent $n$ in the scaling law matters: multiplying the whole matrix by $\alpha$ scales each of its $n$ rows. A square matrix is singular exactly when $\det(A)=0$ .

# Generate random matrices
nd = 2

Ad = np.random.rand(nd, nd)
Bd = np.random.rand(nd, nd)

Cd = np.array([(1, 0, 0), (-2, 0, 0), (0, 1, 1)])

print("Ad = ")
print(Ad)
print("\nBd = ")
print(Bd)
print("\nCd = ")
print(Cd)

Ad =
[[0.56804456 0.92559664]
 [0.07103606 0.0871293 ]]

Bd =
[[0.0202184  0.83261985]
 [0.77815675 0.87001215]]

Cd =
[[ 1  0  0]
 [-2  0  0]
 [ 0  1  1]]

Activity

Verify the properties listed under Some properties for the determinant include
Are $A_d$ , $B_d$ or $C_d$ singular?

# Property 1
print("det(A*B) = ", linalg.det(Ad.dot(Bd)))

print("det(A)*det(B) = ", linalg.det(Ad) * linalg.det(Bd))

det(A*B) =  0.010247347495272154
det(A)*det(B) =  0.010247347495272162

# Property 2

# Property 3

# Property 4

Another Example (for at home)

Expand along the first row of

A=\begin{bmatrix}1&5&0\\2&4&-1\\0&-2&0\end{bmatrix}.

(4)

Then

\det(A)=1\det\begin{bmatrix}4&-1\\-2&0\end{bmatrix}-5\det\begin{bmatrix}2&-1\\0&0\end{bmatrix}+0\det\begin{bmatrix}2&4\\0&-2\end{bmatrix}=-2.

(5)

This is the worked example previously shown as a crop from Lay; it is written natively here so the signs and arithmetic remain searchable and accessible.

Rank¶

The rank of $A\in\mathbb{R}^{n\times m}$ is the dimension of its column space (equivalently, its row space). It is also the size of the largest square submatrix with nonzero determinant. Full rank means $\operatorname{rank}(A)=\min(n,m)$ ; otherwise $A$ is rank deficient.

Activity

Predict the rank of $A_o^T$ , $B_o^T$ , $A_d$ , $B_d$ , $C_d$
Calculate np.linalg.matrix_rank(). Were you correct?

print("rank(A_o) = ", np.linalg.matrix_rank(Ao), "\n")

# Fill in remainder here.

rank(A_o) =  2

Inverse¶

A square matrix $A$ is invertible when there is a matrix $A^{-1}$ satisfying $AA^{-1}=A^{-1}A=I$ . Then $Ax=b$ has the unique solution $x=A^{-1}b$ , although numerical software should solve the system directly rather than form the inverse. Also, $\det(A^{-1})=1/\det(A)$ . An orthogonal matrix $Q$ satisfies $Q^{-1}=Q^\mathsf{T}$ .

Activity

Calculate the inverse of the square matrix $A_d$ and verify that $A_d^{-1} A_d = I$ . (The rectangular matrix $A_o$ has no two-sided inverse.)
Verify that $\det(A_d^{-1}) = 1/\det(A_d)$
Is $Q$ an orthogonal matrix?

# Task 1

# Task 2

# Task 3
# Is this an orthogonal matrix? Yes, no, or need more information?
theta = 0.2
Q = np.array([(np.cos(theta), -np.sin(theta)), (np.sin(theta), np.cos(theta))])

print("Q = ")
print(Q)

Q =
[[ 0.98006658 -0.19866933]
 [ 0.19866933  0.98006658]]

Solving Linear Systems¶

Consider the linear system $A_l x = b_l$

Al = np.array([(4, 3), (6, 3)])
bl = np.array([1, 0])
print("Al = \n", Al)
print("\nbl = \n", bl)

Al =
 [[4 3]
 [6 3]]

bl =
 [1 0]

Explicit Inverse¶

Calculate $x$ by explicitly using $A_l^{-1}$ . Hint: Use linalg.inv().

Ainv = linalg.inv(Al)
print("Ainv = \n", Ainv, "\n")

# Now calculate and print x

Ainv =
 [[-0.5         0.5       ]
 [ 1.         -0.66666667]]

LU Decomposition¶

Perform LU decomposition on $A_l$ . What structures do the $P$ , $L$ , and $U$ matrices have?

# Create test linear systems
# The transpose is deliberate: it gives a permutation matrix P that is NOT
# symmetric, so the MATLAB and SciPy conventions below give different answers.
A = np.random.rand(4, 4).T
print("A = \n", A, "\n")

b = np.random.rand(4, 1)
print("b = \n", b, "\n")

A =
 [[0.97861834 0.11827443 0.52184832 0.45615033]
 [0.79915856 0.63992102 0.41466194 0.56843395]
 [0.46147936 0.14335329 0.26455561 0.0187898 ]
 [0.78052918 0.94466892 0.77423369 0.6176355 ]]

b =
 [[0.61209572]
 [0.616934  ]
 [0.94374808]
 [0.6818203 ]]

# Perform LU decomposition
P, L, U = linalg.lu(A)

# Permutation matrix
print("P = \n", P)

# Lower triangular matrix
print("L = \n", L)

# Upper triangular matrix
print("U = \n", U)

# Verify result
print("P*L*U = \n", P.dot(L.dot(U)), "\n")

P =
 [[1. 0. 0. 0.]
 [0. 0. 1. 0.]
 [0. 0. 0. 1.]
 [0. 1. 0. 0.]]
L =
 [[1.         0.         0.         0.        ]
 [0.79758282 1.         0.         0.        ]
 [0.81661924 0.63896662 1.         0.        ]
 [0.47156214 0.10299414 0.07659477 1.        ]]
U =
 [[ 0.97861834  0.11827443  0.52184832  0.45615033]
 [ 0.          0.85033527  0.35801643  0.25381783]
 [ 0.          0.         -0.24024999  0.03375169]
 [ 0.          0.          0.         -0.22504038]]
P*L*U =
 [[0.97861834 0.11827443 0.52184832 0.45615033]
 [0.79915856 0.63992102 0.41466194 0.56843395]
 [0.46147936 0.14335329 0.26455561 0.0187898 ]
 [0.78052918 0.94466892 0.77423369 0.6176355 ]]

Is P orthogonal?¶

print("inv(P) = \n", linalg.inv(P), "\n")

print("transpose(P) = \n", P.T, "\n")

print("P.T*P = \n", np.matmul(P.T, P), "\n")

inv(P) =
 [[ 1.  0. -0.  0.]
 [ 0.  0. -0.  1.]
 [ 0.  1. -0.  0.]
 [ 0.  0.  1.  0.]]

transpose(P) =
 [[1. 0. 0. 0.]
 [0. 0. 0. 1.]
 [0. 1. 0. 0.]
 [0. 0. 1. 0.]]

P.T*P =
 [[1. 0. 0. 0.]
 [0. 1. 0. 0.]
 [0. 0. 1. 0.]
 [0. 0. 0. 1.]]

Yes! We see that $P^T = P^{-1}$ and $P^T \cdot P = I$ .

MATLAB¶

Defines LU decomposition as follows:

P \cdot A = L \cdot U

(6)

Consider

A \cdot x=b

(7)

Using MATLAB LU definition

P\cdot A = L\cdot U

(8)

P^T \cdot P \cdot A = P^T \cdot L \cdot U

(9)

A = P^T \cdot L \cdot U

(10)

Substitute into linear system:

P^T \cdot L \cdot U \cdot x = b

(11)

L \cdot U \cdot x = P \cdot b

(12)

Let $y = U \cdot x$ and substitute.

Step 1. Solve $L \cdot y = P \cdot b$ for $y$

Step 2. Solve $U \cdot x = y$ for $x$

Pb = P.dot(b)
print("P*b = ", Pb, "\n")

yLU = linalg.solve(L, Pb)
print("yLU = ", yLU, "\n")

xLU = linalg.solve(U, yLU)
print("xLU = ", xLU, "\n")

# Check: does this x actually solve A*x = b?
print("||A*x - b|| = ", np.linalg.norm(A.dot(xLU) - b), "\n")

P*b =  [[0.61209572]
 [0.94374808]
 [0.6818203 ]
 [0.616934  ]]

yLU =  [[ 0.61209572]
 [ 0.45555105]
 [-0.10911075]
 [ 0.28973105]]

xLU =  [[ 0.98256068]
 [ 0.80496658]
 [ 0.27328499]
 [-1.28746252]]

||A*x - b|| =  0.42382052546128374

SciPy¶

Defines LU decomposition as:

A = P \cdot L \cdot U

(13)

Consider

A \cdot x=b

(14)

SciPy LU definition

A = P \cdot L\cdot U

(15)

Substitute into linear system:

P \cdot L \cdot U \cdot x = b

(16)

P^T \cdot P \cdot L \cdot U \cdot x = P^T \cdot b

(17)

L \cdot U \cdot x = P^T \cdot b

(18)

Let $y = U \cdot x$ and substitute.

Step 1. Solve $L \cdot y = P^T \cdot b$ for $y$

Step 2. Solve $U \cdot x = y$ for $x$

## LU decomposition algorithm.
Pb = (P.T).dot(b)
print("P.T*b = ", Pb, "\n")

yLU = linalg.solve(L, Pb)
print("yLU = ", yLU, "\n")

xLU = linalg.solve(U, yLU)
print("xLU = ", xLU, "\n")

# Check: does this x actually solve A*x = b?
print("||A*x - b|| = ", np.linalg.norm(A.dot(xLU) - b), "\n")

P.T*b =  [[0.61209572]
 [0.6818203 ]
 [0.616934  ]
 [0.94374808]]

yLU =  [[ 0.61209572]
 [ 0.19362327]
 [-0.00663395]
 [ 0.63567297]]

xLU =  [[ 1.99078818]
 [ 1.22630486]
 [-0.3692182 ]
 [-2.82470629]]

||A*x - b|| =  3.6821932062951477e-16

What is the difference? A transpose.

Verify our answer with `linalg.solve`¶

Solve the linear system using linalg.solve

x = linalg.solve(Al, bl)
print("x = \n", x)

x =
 [-0.5  1. ]

Invertible Matrix Theorem¶

For a square $n\times n$ matrix $A$ , the following statements are equivalent:

$A$ is invertible; its row-reduced form is $I$ ; and it has $n$ pivots.
$Ax=0$ has only the trivial solution, so $\operatorname{Nul}(A)=\{0\}$ and $\dim\operatorname{Nul}(A)=0$ .
The columns of $A$ are linearly independent, form a basis of $\mathbb{R}^n$ , and span $\mathbb{R}^n$ ; equivalently $\operatorname{rank}(A)=n$ .
The map $x\mapsto Ax$ is both one-to-one and onto; therefore $Ax=b$ has a solution for every $b\in\mathbb{R}^n$ .
A left or right inverse exists; $A^\mathsf{T}$ is invertible; $\det(A)\ne0$ ; and zero is not an eigenvalue.
The row space is $\mathbb{R}^n$ , $(\operatorname{Col}A)^\perp=\{0\}$ , $(\operatorname{Nul}A)^\perp=\mathbb{R}^n$ , and $A$ has $n$ nonzero singular values.

These equivalences consolidate Lay’s Invertible Matrix Theorem into one searchable list.

Eigenvectors and Eigenvalues¶

For square $A$ , a nonzero vector $v$ is an eigenvector with eigenvalue $\lambda$ when $Av=\lambda v$ . Thus $A-\lambda I$ is singular and eigenvalues are roots of $\det(A-\lambda I)=0$ . Counting algebraic multiplicity, $\det(A)=\prod_i\lambda_i$ .

If $A$ is real and symmetric, the spectral theorem gives $A=V\Lambda V^\mathsf{T}$ with real eigenvalues and orthonormal eigenvectors. Only under this symmetry assumption can definiteness be read directly from eigenvalue signs: all positive means positive definite, all nonnegative means positive semidefinite, and mixed signs mean indefinite.

A nonsymmetric real matrix may have complex eigenvalues, and its eigenvalues do not in general classify the quadratic form $x^\mathsf{T}Ax$ . That form is governed by the symmetric part $(A+A^\mathsf{T})/2$ . For rectangular matrices, singular values $\sigma_i\ge0$ —the square roots of the eigenvalues of $A^\mathsf{T}A$ —play the analogous role.

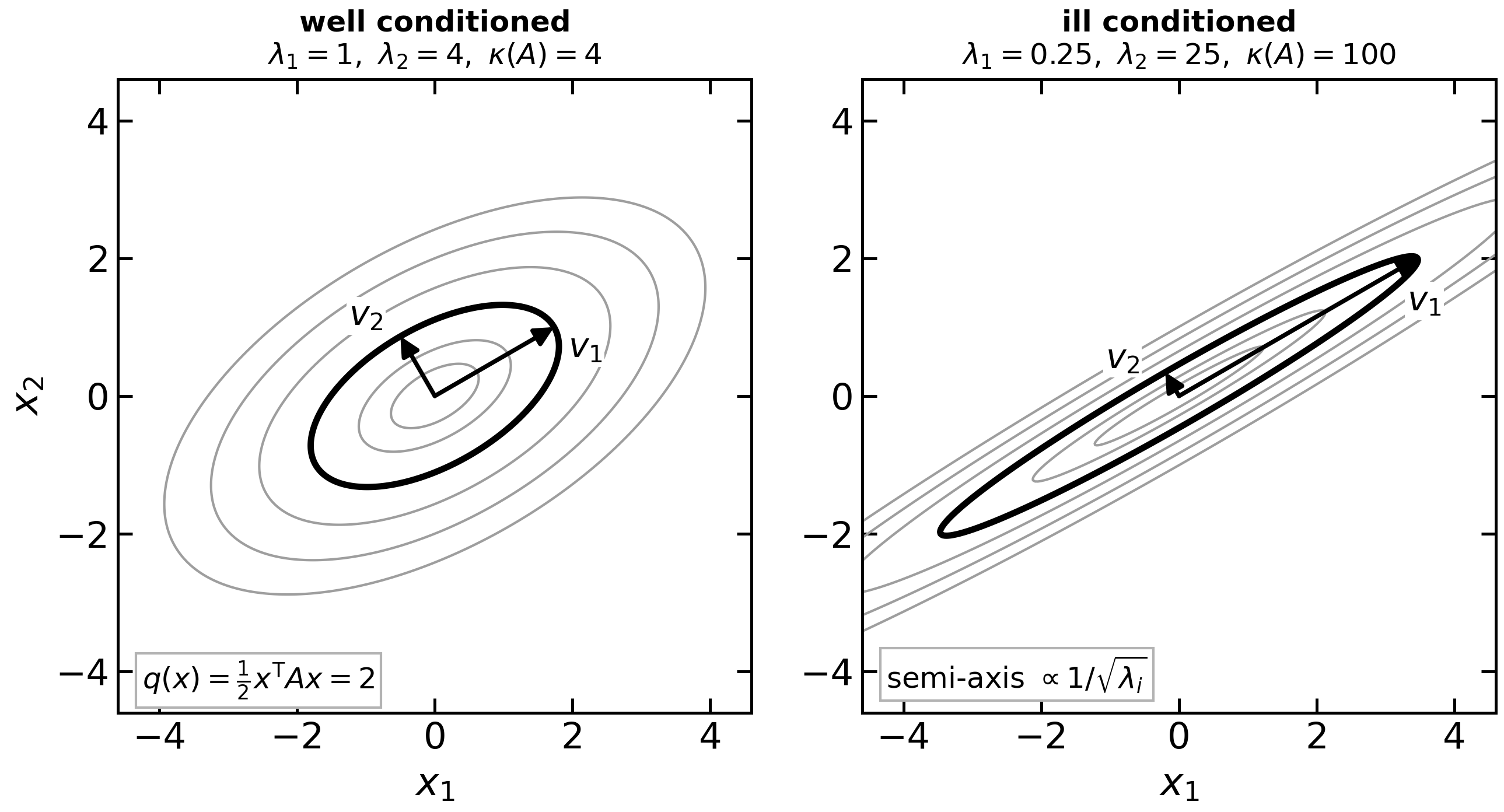

Level sets of a quadratic form, as one picture¶

$Level sets of the quadratic form q(x)=\tfrac12 x^\mathsf{T} A x for symmetric positive definite A, with the eigenvectors drawn as the principal axes. Both panels use the same eigenvectors and the same level q=2; only the eigenvalues change.$

Eigenvalues and eigenvectors of a symmetric matrix have a picture: they are the principal axes of the level sets of $q(x) = \tfrac12 x^\mathsf{T} A x$ . In the rotated coordinates $z = V^\mathsf{T} x$ the level set is $\lambda_1 z_1^2 + \lambda_2 z_2^2 = 2q$ , so the semi-axis along $v_i$ has length $\sqrt{2q/\lambda_i} \propto 1/\sqrt{\lambda_i}$ --- a large eigenvalue means steep, hence short.

The right-hand panel is the same picture with a condition number of 100. Note the axis ratio is $\sqrt{\kappa(A)}$ , not $\kappa(A)$ ; by the time you reach the $\kappa \approx 10^{14}$ you will meet in the Condition Number section below, the ellipse is not drawable.

This figure is rendered from figures/plots/quadratic-form-level-sets.py and is the same image printed in the course pack, so what you annotate in lecture and what you see here cannot drift apart. The cells below are the live version.

Ae = np.array([(0, -4, -6), (-1, 0, -3), (1, 2, 5)])
print("Ae = \n", Ae)

Ae =
 [[ 0 -4 -6]
 [-1  0 -3]
 [ 1  2  5]]

Activity

Do you expect this matrix to have negative eigenvalues? Choose: Yes / No / Cannot tell from inspection.
Calculate the eigenvalues.
The eigenvalues of this nonsymmetric matrix are positive. Does that prove $x^\mathsf{T}A_e x>0$ for every nonzero $x$ ?
Form the symmetric part $H=(A_e+A_e^\mathsf{T})/2$ and use its eigenvalues to classify the quadratic form.
Calculate $\det(A_e)$ using only the eigenvalues of $A_e$ .

# Expect negative eigenvalues?
# Yes / No / Cannot tell from inspection?
# Write a sentence to justify your answer.

### Calculate eigenvalues

# Matrix Ae is nonsymmetric
print("Matrix = \n", Ae, "\n")
l, v = linalg.eig(Ae)
print("Eigenvalues = ", l, "\n")
print("Eigenvectors = \n", v, "\n")

# The symmetric part, not Ae's eigenvalues, classifies x.T @ Ae @ x
H = 0.5 * (Ae + Ae.T)
print("Eigenvalues of symmetric part = ", linalg.eigvalsh(H))

Matrix =
 [[ 0 -4 -6]
 [-1  0 -3]
 [ 1  2  5]]

Eigenvalues =  [1.+0.j 2.+0.j 2.+0.j]

Eigenvectors =
 [[-0.81649658 -0.95681941 -0.06734698]
 [-0.40824829  0.04849614 -0.81965465]
 [ 0.40824829  0.28660904  0.56888543]]

Eigenvalues of symmetric part =  [-3.08257569  2.          6.08257569]

Singular Value Decomposition¶

Notes will be given in class.

Activity

Calculate singular value decomposition of $A_l$ and $C_d$
What is the rank of each matrix?

# Matrix Al
print("Matrix = \n", Al, "\n")
U, s, Vh = linalg.svd(Al)
print("U = \n", U, "\n")
print("S = \n", s, "\n")
print("Vh = \n", Vh, "\n")

## Rank (from inspecting singular values)?

Matrix =
 [[4 3]
 [6 3]]

U =
 [[-0.59581566 -0.80312122]
 [-0.80312122  0.59581566]]

S =
 [8.33557912 0.71980602]

Vh =
 [[-0.86400595 -0.50348159]
 [ 0.50348159 -0.86400595]]

Vector and Matrix Norms¶

A vector norm $||x||$ measures the length of a vector. It maps $\mathbb{R}^n$ into the nonnegative reals and satisfies three properties:

||x|| = 0 \Rightarrow x = 0, \qquad ||\alpha x|| = |\alpha| \cdot ||x||, \qquad ||x + y|| \leq ||x|| + ||y||

(19)

The last one is the triangle inequality. The $p$ -norm is $||x||_p = \left( \sum_{i=1}^n |x_i|^p \right)^{1/p}$ for $p \geq 1$ , and three cases matter here:

$||x||_1 = \sum_{i=1}^n |x_i|$ --- the 1-norm
$||x||_2 = \left( \sum_{i=1}^n x_i^2 \right)^{1/2} = \sqrt{x^T x}$ --- the Euclidean norm
$||x||_{\infty} = \max_i |x_i|$ --- the max norm

Also $|x^T y| \leq ||x||_p \cdot ||y||_q$ whenever $1/p + 1/q = 1$ ; the case $p = q = 2$ is the Cauchy-Schwarz inequality.

Matrix norms are induced by vector norms:

||A|| = \max_{x \neq 0} \frac{||Ax||}{||x||} \qquad \Rightarrow \qquad ||Ax|| \leq ||A|| \cdot ||x||

(20)

The rules for the three induced norms are

$||A||_1 = \max_j \sum_i |A_{ij}|$ --- largest column sum
$||A||_{\infty} = \max_i \sum_j |A_{ij}|$ --- largest row sum
$||A||_2 =$ the largest singular value of $A$

Finally, the induced norms and the Frobenius norm $||A||_F = \left( \sum_i \sum_j A_{ij}^2 \right)^{1/2}$ all satisfy

||AB|| \leq ||A|| \cdot ||B||

(21)

for any two compatible matrices $A$ and $B$ . This is submultiplicativity, and it is what the condition number in the next section rests on.

Definition 2.7, pp. 21-22 in Biegler (2010).

x = np.random.rand(3, 1)
print("x = \n", x)

y = np.random.rand(3, 1)
print("y = \n", y)

x =
 [[0.3595079 ]
 [0.43703195]
 [0.6976312 ]]
y =
 [[0.06022547]
 [0.66676672]
 [0.67063787]]

Activity

Verify the vector norm properties hold for the p-2 norm using $x$ and $y$ . Hint: linalg.norm()
Calculate $||A_l||_1$ , $||A_l||_{\infty}$ and $||A_l||_2$ using both the rules given above and SciPy

Condition Number¶

Activity

Estimate the condition number of $A_l$ by inspecting the SVD results.
Calculate the condition number of $A_l$ using np.linalg.cond()

Four Factorizations, Four Failures¶

Everything above has been a factorization that works. Here are the same four failing, in isolation: no objective function, no solver, and no iteration anywhere near them. Each one is a small matrix and a printed contradiction, and each one comes back later in the course inside an algorithm, where four things could be wrong at once. Meet them here, where only one thing can be.

Every number below is computed when you run the cell. Nothing is transcribed from the handout, and nothing is hard coded.

A note before you start: your tables may not match the handout’s, and that is not a mistake. These demos sit right at the edge of double precision, so the exact digits, and sometimes the exact row on which a failure first appears, depend on the LAPACK library underneath NumPy and SciPy. The same code was run on two Python stacks while this notebook was written: on one, D4 first disagrees at $\varepsilon=10^{-9}$ ; on another, at $\varepsilon=10^{-10}$ . Google Colab is a third stack again. What is robust is the pattern - a well-conditioned problem, a factorization that quietly lies about it, two library routines that disagree with the truth and with each other. If your table differs from the printed one, you have not done anything wrong; you have found the point, which is that the answer depends on the machine.

Two of the cells below deliberately produce an error or a wrong answer. That is the demonstration, not a defect: D2 makes scipy.linalg.cholesky raise a LinAlgError on a matrix that is provably positive definite, and D4 makes scipy.linalg.ldl report the wrong inertia. Please do not “fix” them.

D1. LU: partial pivoting does nothing, and the residual lies¶

Wilkinson’s matrix has 1 on the diagonal, -1 below it, and a last column of all ones. Pick an $x$ , form $b=Ax$ , solve, and compare with the $x$ you started from.

Watch the condition number column: it crawls from about 9 to about 31 across the whole sweep. The problem stays about as well conditioned as a problem gets. Only the algorithm fails.

# D1: LU with partial pivoting on Wilkinson's matrix.
import numpy as np
from scipy import linalg

rng = np.random.default_rng(0)


def wilkinson(n):
    """1 on the diagonal, -1 below it, last column all ones."""
    A = np.eye(n) - np.tril(np.ones((n, n)), -1)
    A[:, -1] = 1.0
    return A


print("A for n = 5:")
print(wilkinson(5).astype(int), "\n")

header = "{:>4} {:>8} {:>14} {:>14} {:>14} {:>9} {:>9}"
row = "{:>4d} {:>8.1f} {:>14.1e} {:>14.1e} {:>14.1e} {:>9.1e} {:>9}"
print(header.format("n", "K(A)", "growth", "2^(n-1)", "rel. resid",
                    "rel. err", "P == I ?"))

for n in [20, 30, 40, 50, 60, 70]:
    A = wilkinson(n)
    x_true = rng.standard_normal(n)
    b = A @ x_true

    P, L, U = linalg.lu(A)
    growth = np.abs(U).max() / np.abs(A).max()

    x_hat = linalg.solve(A, b)
    rel_resid = np.linalg.norm(A @ x_hat - b) / (np.linalg.norm(A)
                                                 * np.linalg.norm(x_hat))
    rel_err = np.linalg.norm(x_hat - x_true) / np.linalg.norm(x_true)

    print(row.format(n, np.linalg.cond(A), growth, 2.0 ** (n - 1),
                     rel_resid, rel_err,
                     str(np.array_equal(P, np.eye(n)))))

A for n = 5:
[[ 1  0  0  0  1]
 [-1  1  0  0  1]
 [-1 -1  1  0  1]
 [-1 -1 -1  1  1]
 [-1 -1 -1 -1  1]]

   n     K(A)         growth        2^(n-1)     rel. resid  rel. err  P == I ?
  20      8.8        5.2e+05        5.2e+05        5.6e-13   3.5e-12      True
  30     13.3        5.4e+08        5.4e+08        5.1e-10   5.4e-09      True
  40     17.8        5.5e+11        5.5e+11        2.6e-07   5.1e-06      True
  50     22.3        5.6e+14        5.6e+14        8.2e-05   1.8e-03      True
  60     26.8        5.8e+17        5.8e+17        1.2e-02   3.1e-01      True
  70     31.3        5.9e+20        5.9e+20        1.5e-02   3.8e-01      True

Two facts hold exactly on every row, and the table checks both for you:

the permutation $P$ that partial pivoting produces is the identity - it performs no interchanges at all, because every candidate pivot is already the largest in its column; and
the growth factor is exactly $2^{n-1}$ , the worst case the bound allows.

Activity

Read the table across, not down. The condition number goes from about 9 to about 31, barely anything, while the answer loses every digit it had. Which of the two failure modes - an ill-conditioned problem, or an unstable algorithm - is this, and which is it not?
The relative residual stays small long after the answer is wrong. What does that tell you about using $\|Ax-b\|$ as your only check that a solve succeeded?
Change the seed on rng and rerun. Which columns move, and which do not?

D2. Cholesky: a positive definite matrix the computer will not factorize¶

The $n\times n$ Hilbert matrix, $A_{ij}=1/(i+j-1)$ , is symmetric positive definite for every $n$ : provably, in exact arithmetic, every eigenvalue is positive.

The LinAlgError reported in the table below is intended. The cell catches it and prints it as a result rather than letting it stop the notebook.

# D2: Cholesky on the Hilbert matrix, which is SPD for every n in exact arithmetic.
import numpy as np
from scipy import linalg

print("{:>4} {:>14} {:>16} {:>24}".format(
    "n", "reported K(A)", "smallest comp. e.v.", "scipy.linalg.cholesky"))

for n in [12, 13, 14, 15]:
    A = linalg.hilbert(n)
    smallest = np.linalg.eigvalsh(A).min()

    try:
        linalg.cholesky(A)
        status = "succeeds"
    except np.linalg.LinAlgError:
        status = "LinAlgError (expected)"
    except linalg.LinAlgError:
        status = "LinAlgError (expected)"

    print("{:>4d} {:>14.1e} {:>16.1e} {:>24}".format(
        n, np.linalg.cond(A), smallest, status))

   n  reported K(A) smallest comp. e.v.    scipy.linalg.cholesky
  12        1.6e+16          1.0e-16                 succeeds
  13        5.1e+17          8.6e-20                 succeeds
  14        3.0e+17         -5.4e-18                 succeeds
  15        2.6e+17         -5.5e-18   LinAlgError (expected)

Two separate things go wrong, two rows apart. At $n=14$ a quantity that is provably positive is computed as negative. At $n=15$ the factorization notices and refuses. Keep the two events distinct - they are different failures, and only the second one announces itself.

Notice also that the reported condition number is not monotone, even though the true condition number of the Hilbert matrix grows without bound. That is not a misprint either: past $n\approx 12$ the reported $K(A)$ is itself a floating point computation that has run out of digits. You are asking a damaged instrument how much damage there is.

Activity

Later in the course, Cholesky’s failure to exist is used as a signal that a Hessian is not sufficiently positive definite. After this table, state that claim more carefully. What exactly does the failure tell you, and what does it not tell you?
Does the $n$ at which cholesky refuses match the handout on your machine? If not, reread the note at the top of this section.
Extend the loop past $n=15$ . Does the smallest computed eigenvalue get steadily more negative, or does it wander?

D3. QR: orthogonality evaporates quietly¶

Take a nearly rank deficient matrix - three columns that agree to eight digits - and factorize it three ways. All three produce a correct $QR$ , in the sense that $\|QR-A\|$ is at roundoff. The question is how orthogonal $Q$ actually is.

# D3: three ways to compute QR, and how orthogonal Q really is.
import numpy as np
from scipy import linalg


def classical_gram_schmidt(A):
    m, n = A.shape
    Q = np.zeros((m, n))
    R = np.zeros((n, n))
    for j in range(n):
        v = A[:, j].copy()
        for i in range(j):
            # Classical: every projection is taken against the ORIGINAL column.
            R[i, j] = Q[:, i] @ A[:, j]
            v = v - R[i, j] * Q[:, i]
        R[j, j] = np.linalg.norm(v)
        Q[:, j] = v / R[j, j]
    return Q, R


def modified_gram_schmidt(A):
    m, n = A.shape
    Q = np.zeros((m, n))
    R = np.zeros((n, n))
    V = A.copy()
    for j in range(n):
        R[j, j] = np.linalg.norm(V[:, j])
        Q[:, j] = V[:, j] / R[j, j]
        for i in range(j + 1, n):
            # Modified: project against the RUNNING remainder, not the original.
            R[j, i] = Q[:, j] @ V[:, i]
            V[:, i] = V[:, i] - R[j, i] * Q[:, j]
    return Q, R


eps = 1e-8
A = np.array([[1.0, 1.0, 1.0],
              [eps, 0.0, 0.0],
              [0.0, eps, 0.0],
              [0.0, 0.0, eps]])

print("A =\n", A)
print("\nK_2(A) = {:.1e}\n".format(np.linalg.cond(A)))

methods = [
    ("classical Gram-Schmidt", classical_gram_schmidt),
    ("modified Gram-Schmidt", modified_gram_schmidt),
    ("Householder (scipy.linalg.qr)", lambda M: linalg.qr(M, mode="economic")),
]

print("{:<32} {:>14} {:>14}".format("method", "||Q'Q - I||_2", "||QR - A||_2"))
for name, factorize in methods:
    Q, R = factorize(A)
    orth = np.linalg.norm(Q.T @ Q - np.eye(A.shape[1]), 2)
    recon = np.linalg.norm(Q @ R - A, 2)
    print("{:<32} {:>14.1e} {:>14.1e}".format(name, orth, recon))

A =
 [[1.e+00 1.e+00 1.e+00]
 [1.e-08 0.e+00 0.e+00]
 [0.e+00 1.e-08 0.e+00]
 [0.e+00 0.e+00 1.e-08]]

K_2(A) = 1.7e+08

method                            ||Q'Q - I||_2   ||QR - A||_2
classical Gram-Schmidt                  5.0e-01        1.4e-25
modified Gram-Schmidt                   8.2e-09        2.5e-25
Householder (scipy.linalg.qr)           2.5e-16        5.0e-24

Same matrix, same factorization, same reconstruction to roundoff - and roughly fifteen orders of magnitude of difference in a property $Q$ is defined to have. Nothing raises an exception. Every one of the three returns a $Q$ and an $R$ and looks pleased with itself.

Activity

Which of the four failures in this section would you be least likely to catch in your own code, and why does that make it the dangerous one?
The classical Gram-Schmidt row is not a rounding error nuisance. At $\|Q^\mathsf{T}Q-I\|_2\approx 5\times 10^{-1}$ , is $Q$ orthogonal in any useful sense at all?
Later in the course, $Q$ from a $QR$ factorization is used to build a null space basis for reduced space methods. What goes wrong there if $Q$ is only orthogonal to eight digits?
Sweep eps from 10^-1 down to 10^-10 and plot the three orthogonality errors. Where does each method give up?

D4. Symmetric indefinite: the inertia comes back wrong¶

A $4\times4$ KKT matrix, with a positive definite Hessian block $H=2I$ and two constraint rows that nearly duplicate each other:

K=\begin{bmatrix}H & A^\mathsf{T}\\ A & 0\end{bmatrix},\qquad H=\begin{bmatrix}2&0\\0&2\end{bmatrix},\qquad A=\begin{bmatrix}1&1\\1&1+\varepsilon\end{bmatrix}.

(22)

$A$ is nonsingular for every $\varepsilon\neq0$ , so the inertia of $K$ - the counts of positive, negative and zero eigenvalues - is $(2,2,0)$ exactly, on every row below. The exact column is not an assertion typed in by hand: it is recomputed symbolically with sympy, over the rationals, from the actual double precision entries of $K$ .

The wrong answers printed below are the demonstration. They are what this cell exists to show.

# D4: inertia of a nearly degenerate KKT matrix, three ways.
import numpy as np
import sympy
from scipy import linalg


def inertia_exact(K):
    """Exact inertia of the double precision entries, over the rationals."""
    M = sympy.Matrix(K.shape[0], K.shape[1],
                     lambda i, j: sympy.Rational(K[i, j]))
    pos = neg = zero = 0
    for value, multiplicity in M.eigenvals().items():
        v = sympy.N(value, 50)
        if v > 0:
            pos += multiplicity
        elif v < 0:
            neg += multiplicity
        else:
            zero += multiplicity
    return (pos, neg, zero)


def inertia_from_block_diagonal(D):
    """Inertia read off the block diagonal D returned by scipy.linalg.ldl."""
    pos = neg = zero = 0
    i, N = 0, D.shape[0]
    while i < N:
        if i + 1 < N and D[i, i + 1] != 0.0:
            ev = np.linalg.eigvalsh(D[i:i + 2, i:i + 2])
            i += 2
        else:
            ev = np.array([D[i, i]])
            i += 1
        pos += int((ev > 0).sum())
        neg += int((ev < 0).sum())
        zero += int((ev == 0).sum())
    return (pos, neg, zero)


print("{:>10} {:>14} {:>12} {:>12} {:>12}".format(
    "epsilon", "reported K(K)", "exact", "ldl", "eigvalsh"))

for eps in [1e-6, 1e-7, 1e-8, 1e-9, 1e-10]:
    H = 2.0 * np.eye(2)
    A = np.array([[1.0, 1.0], [1.0, 1.0 + eps]])
    K = np.block([[H, A.T], [A, np.zeros((2, 2))]])

    _, D, _ = linalg.ldl(K)
    ev = np.linalg.eigvalsh(K)
    from_eig = (int((ev > 0).sum()), int((ev < 0).sum()), int((ev == 0).sum()))

    print("{:>10.0e} {:>14.1e} {:>12} {:>12} {:>12}".format(
        eps, np.linalg.cond(K), str(inertia_exact(K)),
        str(inertia_from_block_diagonal(D)), str(from_eig)))

   epsilon  reported K(K)        exact          ldl     eigvalsh

     1e-06        2.6e+13    (2, 2, 0)    (2, 2, 0)    (2, 2, 0)
     1e-07        2.6e+15    (2, 2, 0)    (2, 2, 0)    (2, 2, 0)
     1e-08        1.1e+18    (2, 2, 0)    (3, 1, 0)    (3, 1, 0)
     1e-09        5.8e+16    (2, 2, 0)    (3, 1, 0)    (2, 2, 0)
     1e-10        3.2e+17    (2, 2, 0)    (3, 1, 0)    (3, 1, 0)

No solver, no barrier parameter, no iteration - just a matrix, a factorization, and a wrong answer about it.

Find the row where the two computed columns disagree with the truth and with each other. On the machine the handout was written on that is $\varepsilon=10^{-9}$ ; on yours it may be a different row, or there may be more than one. That variability is itself the lesson: two routines in the same library, asked the same question about the same matrix, return different answers, and which one is wrong where depends on the LAPACK build underneath.

Activity

An interior point solver reads the inertia of the KKT matrix at every iteration to decide whether to correct the Hessian. What does this table do to that sentence?
A solver that reads $(3,1,0)$ here concludes the reduced Hessian has the wrong curvature and adds a correction it does not need. Describe the mirror case, where the measurement error points the other way. Which is worse?

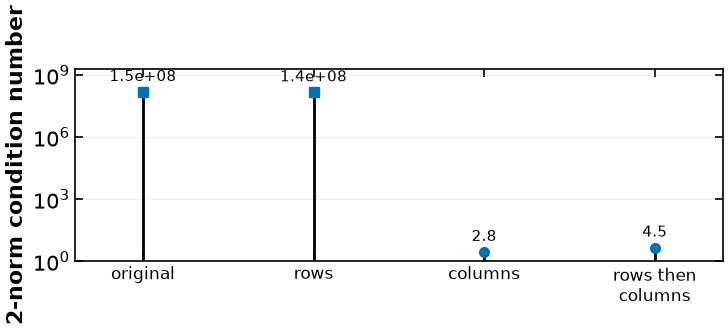

Where did the ill conditioning come from? Note that it is not a scaling accident: it is two constraints that nearly say the same thing, which is the failure of a constraint qualification.

Where each of these comes back. None of the four is a curiosity; each is planted here and paid off later, inside an algorithm that has to cope with it.

Failure	Comes back as
D1, $LU$ growth	why badly scaled models fail
D2, Cholesky	why $B^k\succ0$ is enforced in quasi-Newton methods, not checked
D3, $QR$	the cost of forming a null space basis for reduced space methods
D4, inertia	what inertia correction in an interior point method is correcting
$K(A)$ , scaling	degeneracy, rank deficiency and NLP diagnostics

The algorithmic halves already exist as runnable code: Quasi-Newton Methods for Unconstrained Optimization carries the Broyden update with a Cholesky factorization, Inertia-Corrected Newton Method for Equality Constrained NLPs runs inertia correction inside the iteration, and NLP Diagnostics with Degeneracy Hunter is the diagnostic tooling for the last row.

Notation used in the references¶

Matrix Operations¶

Determinant¶

Rank¶

Inverse¶

Solving Linear Systems¶

Explicit Inverse¶

LU Decomposition¶

Is P orthogonal?¶

MATLAB¶

SciPy¶

Verify our answer with linalg.solve¶

Invertible Matrix Theorem¶

Eigenvectors and Eigenvalues¶

Level sets of a quadratic form, as one picture¶

Singular Value Decomposition¶

Vector and Matrix Norms¶

Condition Number¶

Four Factorizations, Four Failures¶

D1. LU: partial pivoting does nothing, and the residual lies¶

D2. Cholesky: a positive definite matrix the computer will not factorize¶

D3. QR: orthogonality evaporates quietly¶

D4. Symmetric indefinite: the inertia comes back wrong¶

Verify our answer with `linalg.solve`¶
