Inertia-Corrected Newton Method for Equality Constrained NLPs

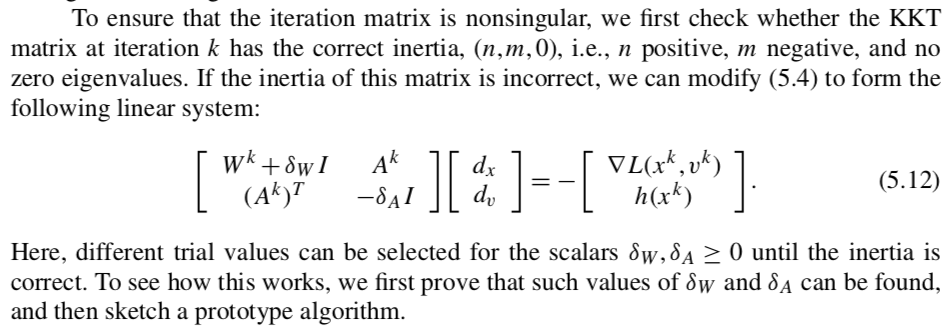

Inertia correction¶

For symmetric $\mathbf{K}=\left[\begin{smallmatrix}\mathbf{W}&\mathbf{J}_h^T\\\mathbf{J}_h&0\end{smallmatrix}\right]$ , full-row-rank $\mathbf{J}_h$ and positive reduced Hessian give inertia $(n,m,0)$ . The theorem refers to the original equality KKT system; a regularized system’s signature has a different interpretation. If needed, solve

\begin{bmatrix}\mathbf{W}+\delta_W \mathbf{I}&\mathbf{J}_h^T\\\mathbf{J}_h&-\delta_A \mathbf{I}\end{bmatrix} \begin{bmatrix}\mathbf d_x\\\mathbf d_v\end{bmatrix} =-\begin{bmatrix}\nabla_{\mathbf{x}}L\\h\end{bmatrix},\qquad\delta_W,\delta_A\ge0.

(1)

The code uses A = \mathbf{J}_h.T and unchanged finite-difference helpers. Its loop inspects the unmodified signature, chooses a positive dual regularization when an eigenvalue is classified near zero, and grows the primal correction until the numerical signature is $(n,m,0)$ or a limit is reached. It retains the previous successful scale as a starting estimate. Near-zero classification is a numerical diagnosis; a zero can also arise from a singular reduced Hessian rather than a dependent Jacobian. These corrections make a step computable; they do not repair a model or certify the original SOSC. Biegler (5.12), Theorem 5.4 and Algorithm 5.2, pp. 97–99.

Helper Functions¶

# Load required Python libraries.
import matplotlib.pyplot as plt
import numpy as np
from scipy import linalg


## Check if element of array is NaN
def check_nan(A):
    """Count NaN entries in an array."""
    return np.sum(np.isnan(A))


## Calculate gradient with central finite difference
def my_grad_approx(x, f, eps1, verbose=False):
    """
    Calculate gradient of function f using central difference formula

    Inputs:
        x - point for which to evaluate gradient
        f - function to consider
        eps1 - perturbation size

    Outputs:
        grad - gradient (vector)
    """

    n = len(x)
    grad = np.zeros(n)

    if verbose:
        print("***** my_grad_approx at x = ", x, "*****")

    for i in range(0, n):

        # Create vector of zeros except eps in position i
        e = np.zeros(n)
        e[i] = eps1

        # Finite difference formula
        my_f_plus = f(x + e)
        my_f_minus = f(x - e)

        # Diagnostics
        if verbose:
            print("e[", i, "] = ", e)
            print("f(x + e[", i, "]) = ", my_f_plus)
            print("f(x - e[", i, "]) = ", my_f_minus)

        grad[i] = (my_f_plus - my_f_minus) / (2 * eps1)

    if verbose:
        print("***** Done. ***** \n")

    return grad


def my_jac_approx(x, h, eps1, verbose=False):
    """
    Calculate Jacobian of function h(x) using central difference formula

    Inputs:
        x - point for which to evaluate gradient
        h - vector-valued function to consider. h(x): R^n --> R^m
        eps1 - perturbation size

    Outputs:
        A - Jacobian (n x m matrix)
    """

    # Check h(x) at x
    h_x0 = h(x)

    # Extract dimensions
    n = len(x)
    m = len(h_x0)

    # Initialize Jacobian matrix
    A = np.zeros((n, m))

    # Calculate Jacobian by row
    for i in range(0, n):

        # Create vector of zeros except eps in position i
        e = np.zeros(n)
        e[i] = eps1

        # Finite difference formula
        my_h_plus = h(x + e)
        my_h_minus = h(x - e)

        # Diagnostics
        if verbose:
            print("e[", i, "] = ", e)
            print("h(x + e[", i, "]) = ", my_h_plus)
            print("h(x - e[", i, "]) = ", my_h_minus)

        A[i, :] = (my_h_plus - my_h_minus) / (2 * eps1)

    if verbose:
        print("***** Done. ***** \n")

    return A


## Calculate gradient using central finite difference and my_hes_approx
def my_hes_approx(x, grad, eps2):
    """
    Calculate gradient of function my_f using central difference formula and my_grad

    Inputs:
        x - point for which to evaluate gradient
        grad - function to calculate the gradient
        eps2 - perturbation size (for Hessian NOT gradient approximation)

    Outputs:
        H - Hessian (matrix)
    """

    n = len(x)
    H = np.zeros([n, n])

    for i in range(0, n):
        # Create vector of zeros except eps in position i
        e = np.zeros(n)
        e[i] = eps2

        # Evaluate gradient twice
        grad_plus = grad(x + e)
        grad_minus = grad(x - e)

        # Notice we are building the Hessian by column (or row)
        H[:, i] = (grad_plus - grad_minus) / (2 * eps2)

    return H


## Linear algebra calculation
def xxT(u):
    """
    Calculates u*u.T to circumvent limitation with SciPy

    Arguments:
    u - numpy 1D array

    Returns:
    u*u.T

    Assume u is a nx1 vector.
    Recall: NumPy does not distinguish between row or column vectors

    u.dot(u) returns a scalar. This function returns an nxn matrix.
    """

    n = len(u)
    A = np.zeros([n, n])
    for i in range(0, n):
        for j in range(0, n):
            A[i, j] = u[i] * u[j]

    return A


## Analyze Hessian
def analyze_hes(B):
    """Print a Hessian and its eigenvalues."""
    print(B, "\n")

    l = linalg.eigvals(B)
    print("Eigenvalues: ", l, "\n")

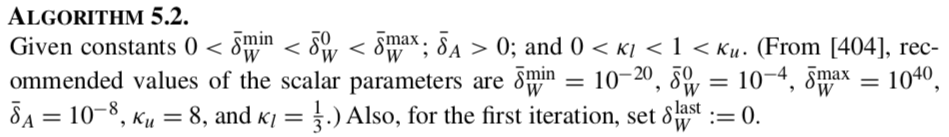

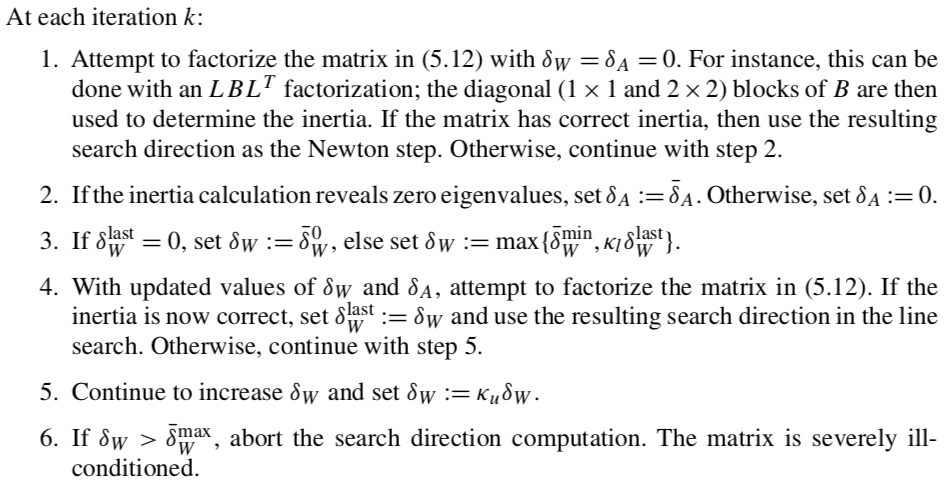

Algorithm 5.2¶

def assemble_check_KKT(W, A, deltaA, deltaW, verbose):
    """Assemble a regularized KKT matrix and check its inertia."""

    n = np.size(W, 0)

    if np.size(W, 1) != n:
        print("WARNING: W is not square. Something is broken.")

    rA = np.size(A, 0)
    m = np.size(A, 1)

    if rA != n:
        print("WARNING: A does not have the correct number of rows.")

    # Assemble KKT matrix
    KKT_top = np.concatenate((W + deltaW * np.eye(n), A), axis=1)
    KKT_bot = np.concatenate((A.T, -deltaA * np.eye(m)), axis=1)
    KKT = np.concatenate((KKT_top, KKT_bot), axis=0)

    # Check inertia of KKT matrix.
    # Out of simplicity, we will just calculate the eigenvalues.
    # Biegler, 2010 explains a more sophisticated (and computationally efficient)
    # strategy
    l, eigvec = linalg.eig(KKT)

    zero_tol = 1e-12

    # Count number of positive eigenvalues
    pos_ev = sum(l >= zero_tol)

    # Count number of eigenvalues close to zero
    zero_ev = sum(np.abs(l) < zero_tol)

    # Count number of negative eigenvalues
    neg_ev = sum(l <= -zero_tol)

    inertia_correct = n == pos_ev and m == neg_ev

    if verbose:
        print(
            "deltaA = ",
            deltaA,
            "  deltaW = ",
            deltaW,
            "inertia =(",
            pos_ev,
            ",",
            neg_ev,
            ",",
            zero_ev,
            ")\n",
        )

    return KKT, inertia_correct, pos_ev, neg_ev, zero_ev


def alg52(x0, calc_f, calc_h, eps1=1e-6, eps2=1e-6, max_iter=10, verbose=False):
    """
    Basic Full Space Newton Method for Equality Constrained NLP

    Input:
        x0 - starting point (vector)
        calc_f - function to calculate objective (returns scalar)
        calc_h - function to calculate constraints (returns vector)
        eps1 - tolerance for primal and dual steps
        eps2 - tolerance for gradient of L1

    Outputs:
        x - history of steps (primal variables)
        v - history of steps (dual variables)
        f - history of objective evaluations
        h - history of constraint evaluations
        df - history of objective gradients
        dL - history of Lagrange function gradients
        A - history of constraint Jacobians
        W - history of Lagrange Hessians

    Notes:
        1. For simplicity, central finite difference is used
           for all gradient calculations.
    """

    ### Specifics for Algorithm 5.2
    # Tuning parameters
    delta_bar_W_min = 1e-20
    delta_bar_W_0 = 1e-4
    delta_bar_W_max = 1e40
    delta_bar_A = 1e-8
    kappa_u = 8
    kappa_l = 1 / 3

    # Declare iteration histories as empty lists
    x = []
    v = []
    f = []
    L = []
    h = []
    df = []
    dL = []
    A = []
    W = []

    # Set for first iteration
    delta_A = 0.0
    delta_W = 0.0
    delta_W_last = 0.0

    # Flag for iterations
    flag = True

    # Iteration counter
    k = 0

    # Copy initial point to primal variable history
    n = len(x0)
    x.append(x0)

    # Evaluate objective and constraints at initial point
    f.append(calc_f(x0))
    h.append(calc_h(x0))

    # Determine number of equality constraints
    m = len(h[0])

    # Initial dual variables with vector of ones
    v.append(np.ones(m))

    # Print header for iteration information
    print(
        "Iter. \tf(x) \t\t||h(x)|| \t||grad_L(x)|| \t||dx|| \t\t||dv|| \t\tdelta_A \tdelta_W"
    )

    while flag and k < max_iter:

        # STEP 1. Construct KKT matrix

        if k > 0:
            # Evaluate objective function
            f.append(calc_f(x[k]))

            # Evaluate constraint function
            h.append(calc_h(x[k]))

        # Evaluate objective gradient
        df.append(my_grad_approx(x[k], calc_f, 1e-6))

        # Evaluate constraint Jacobian
        A.append(my_jac_approx(x[k], calc_h, 1e-6))

        # Evaluate gradient of Lagrange function
        L_func = lambda x_: calc_f(x_) + (calc_h(x_)).dot(v[k])
        L_grad = lambda x_: my_grad_approx(x_, L_func, 1e-6)
        dL.append(L_grad(x[k]))
        norm_dL = linalg.norm(dL[k])

        # Evaluate Hessian of Lagrange function
        W.append(my_hes_approx(x[k], L_grad, 1e-6))

        if verbose:
            print("*** k =", k, " ***")
            print("x_k =", x[k])
            print("v_k =", v[k])
            print("f_k =", f[k])
            print("df_k =", df[k])
            print("h_k =", h[k])
            print("A_k =\n", A[k])
            print("W_k =\n", W[k])
            print("\n")

        ######
        # Algorithm 5.2: Add inertia correction to Algorithm 5.1

        ### ALG. 5.2, STEP 1
        delta_A = 0
        delta_W = 0

        KKT, inertia_correct, pos_ev, neg_ev, zero_ev = assemble_check_KKT(
            W[k], A[k], delta_A, delta_W, verbose
        )

        if not inertia_correct:
            ### ALG. 5.2, STEP 2
            # Assume zero eigenvalue is from rank-deficient Jacobian.
            # Set delta_A to non-zero value
            if zero_ev != 0:
                delta_A = delta_bar_A

            ### ALG. 5.2, STEP 3
            if delta_W_last == 0:
                delta_W = delta_bar_W_0
            else:
                delta_W = max(delta_bar_W_min, kappa_l * delta_W_last)

        while (not inertia_correct) and flag:
            ### ALG. 5.2, STEP 4
            KKT, inertia_correct, pos_ev, neg_ev, zero_ev = assemble_check_KKT(
                W[k], A[k], delta_A, delta_W, verbose
            )

            ### ALG. 5.2, STEP 5
            if not inertia_correct:
                delta_W = kappa_u * delta_W

            ### ALG. 5.2, STEP 6
            if delta_W > delta_bar_W_max:
                flag = False
                print("Abort step computation. KKT matrix is severely ill-conditioned.")

        delta_W_last = delta_W

        ## STEP 2. Solve linear system.

        if flag:
            b = -np.concatenate((dL[k], h[k]), axis=0)
            z = linalg.solve(KKT, b)
        else:
            z = []

        ## STEP 3. Take step
        if flag:
            dx = z[0:n]
            dv = z[n : n + m]

            x.append(x[k] + dx)
            v.append(v[k] + dv)

            norm_dx = linalg.norm(dx)
            norm_dv = linalg.norm(dv)

        ## Print iteration information
        print(
            k,
            "  \t{0: 1.4e} \t{1:1.4e} \t{2:1.4e}".format(
                f[k], linalg.norm(h[k]), norm_dL
            ),
            end="",
        )

        if flag:
            print(" \t{0: 1.4e} \t{1: 1.4e}".format(norm_dx, norm_dv), end="")
        else:
            print(" \t -------  \t -------", end="")

        print(" \t{0: 1.4e} \t{1: 1.4e}".format(delta_A, delta_W), end="\n")

        # Increment counter
        k = k + 1

        ## Check convergence criteria
        if flag:
            flag = norm_dx > eps1 and norm_dv > eps1 and norm_dL > eps2

    if flag and k >= max_iter:
        print("Reached maximum number of iterations.")

    return x, v, f, h, df, dL, A, W

Example 1: redundant constraints¶

Consider:

\begin{align}\min_{\mathbf{x}} \quad & x_1^2 + 2 x_2^2 \\ \mathrm{s.t.} \quad & x_1 + x_2 = 1 \\ & x_1 + x_2 = 1 \end{align}

(2)

Test Algorithm 5.2 with redundant constraints.¶

## Define functions
def my_f2(x):
    """Evaluate the second example objective."""
    return x[0] ** 2 + 2 * x[1] ** 2


def my_h2(x):
    """Evaluate the second example equality constraints."""
    h = np.zeros(2)
    h[0] = x[0] + x[1] - 1
    h[1] = h[0]
    return h


## Declare initial point
x0 = np.array((1, 1))

## Run Algorithm 5.2 on test problem
results = alg52(x0, my_f2, my_h2, verbose=False)

## Display results
xstar = results[0][-1]
print("\nx* =", xstar)

## Display results
vstar = results[1][-1]
print("\nv* =", vstar)

Iter. 	f(x) 		||h(x)|| 	||grad_L(x)|| 	||dx|| 		||dv|| 		delta_A 	delta_W
0   	 3.0000e+00 	1.4142e+00 	7.2111e+00 	 7.4537e-01 	 2.3571e+00 	 1.0000e-08 	 1.0000e-04
1   	 6.6667e-01 	2.3373e-08 	2.9368e-04 	 5.4909e-05 	 9.4088e-05 	 1.0000e-08 	 3.3333e-05
2   	 6.6667e-01 	9.4080e-13 	2.0599e-09 	 5.8893e-10 	 2.3614e-10 	 1.0000e-08 	 1.1111e-05

x* = [0.66666667 0.33333333]

v* = [-0.66666667 -0.66666667]

# Analytic checks at the last appended point; original algorithm is unchanged.
xr = np.asarray(results[0][-1], dtype=float)
vr = np.asarray(results[1][-1], dtype=float)
gf = np.array([2*xr[0],4*xr[1]])
Jr = np.ones((2,2))
hr = np.repeat(xr.sum()-1,2)
print("Last-point feasibility infinity norm:", np.linalg.norm(hr, np.inf))
print("Last-point stationarity infinity norm:", np.linalg.norm(gf+Jr.T@vr, np.inf))

Last-point feasibility infinity norm: 0.0
Last-point stationarity infinity norm: 1.1230172347609368e-10

Test Algorithm 5.2 without redundant constraints.¶

## Define functions
def my_h2b(x):
    """Evaluate the rank-deficient equality constraints."""
    return (x[0] + x[1] - 1) * np.ones(1)


## Run Algorithm 5.2 on test problem
results = alg52(x0, my_f2, my_h2b, verbose=False)

## Display results
xstar = results[0][-1]
print("\nx* =", xstar)

## Display results
vstar = results[1][-1]
print("\nv* =", vstar)

Iter. 	f(x) 		||h(x)|| 	||grad_L(x)|| 	||dx|| 		||dv|| 		delta_A 	delta_W
0   	 3.0000e+00 	1.0000e+00 	5.8310e+00 	 7.4537e-01 	 2.3335e+00 	 0.0000e+00 	 0.0000e+00
1   	 6.6667e-01 	1.3978e-10 	2.9473e-04 	 4.5325e-05 	 1.5285e-04 	 0.0000e+00 	 0.0000e+00
2   	 6.6667e-01 	1.7764e-15 	2.8419e-09 	 7.9814e-10 	 5.1808e-10 	 0.0000e+00 	 0.0000e+00

x* = [0.66666667 0.33333333]

v* = [-1.33333333]

# Analytic checks at the last appended point; original algorithm is unchanged.
xr = np.asarray(results[0][-1], dtype=float)
vr = np.asarray(results[1][-1], dtype=float)
gf = np.array([2*xr[0],4*xr[1]])
Jr = np.ones((1,2))
hr = np.repeat(xr.sum()-1,1)
print("Last-point feasibility infinity norm:", np.linalg.norm(hr, np.inf))
print("Last-point stationarity infinity norm:", np.linalg.norm(gf+Jr.T@vr, np.inf))

Last-point feasibility infinity norm: 0.0
Last-point stationarity infinity norm: 4.312461499011988e-11

Discussion¶

Compare the multipliers with and without the redundant constraint.

Example 2: multiple stationary points¶

Now consider a model whose constraint Jacobian has full row rank but whose objective has multiple stationary points on the feasible set.

Consider:

\begin{align}\min_{\mathbf{x}} \quad & x_1^3 - x_2 -x_1 x_2 - x_2^2 \\ \mathrm{s.t.} \quad & x_1^2 + x_2^2 = 1 \end{align}

(3)

## Copied from notebook with Algorithm 5.1
def my_f3(x):
    """Evaluate the visualization example objective."""
    return x[0] ** 3 - x[1] - x[0] * x[1] - x[1] ** 2


def my_h3(x):
    """Evaluate the visualization example equality constraint."""
    return (x[0] ** 2 + x[1] ** 2 - 1) * np.ones(1)


def visualize(xk=[]):
    """Plot the feasible set, contours, and optional iterate history."""
    n1 = 101
    n2 = 101
    x1eval = np.linspace(-2, 2, n1)
    x2eval = np.linspace(-2, 2, n2)

    X, Y = np.meshgrid(x1eval, x2eval)

    Z = np.zeros([n2, n1])

    for i in range(0, n1):
        for j in range(0, n2):
            Z[j, i] = my_f3((X[j, i], Y[j, i]))

    fig, ax = plt.subplots(1, 1)
    CS = ax.contour(X, Y, Z)
    ax.clabel(CS, inline=1, fontsize=12)

    # Add unit circle
    # Okabe-Ito blue (figures/dowling.mplstyle), was matplotlib's "b".
    circ = plt.Circle((0, 0), radius=1, edgecolor="#0072B2", facecolor="None")
    ax.add_patch(circ)

    # Plot iteration history
    if len(xk) > 0:
        for i in range(0, len(xk)):
            if i == len(xk) - 1:
                c = "#D55E00"  # Okabe-Ito vermillion: the final iterate
            else:
                c = "black"
            plt.scatter(
                (xk[i][0]),
                (xk[i][1]),
                marker="*" if i == len(xk) - 1 else "o",
                s=90 if i == len(xk) - 1 else 30,
                color=c,
            )

    plt.xlim([-2, 2])
    plt.ylim([-2, 2])


visualize()

nt = 200
theta = np.linspace(0, 2 * np.pi, nt)
obj = np.zeros(nt)


for i in range(0, nt):
    x_ = np.cos(theta[i])
    y_ = np.sin(theta[i])

    obj[i] = my_f3((x_, y_))


plt.figure()
plt.plot(theta, obj)
plt.xlabel("$\\theta$ [radians]")
plt.ylabel("Objective")
plt.grid()

Starting Point Near Global Min ( $\theta_0 = 1.0$ )¶

theta0 = 1.0
x0 = np.array((np.cos(theta0), np.sin(theta0)))

## Run Algorithm 5.2 on test problem
results = alg52(x0, my_f3, my_h3)

## Display results
xstar = results[0][-1]
print("\nx* =", xstar)

## Display results
vstar = results[1][-1]
print("\nv* =", vstar)

## Convert into theta
print("\ntheta* =", np.arccos(xstar[0]), "=", np.arcsin(xstar[1]))

## Visualize
visualize(results[0])

Iter. 	f(x) 		||h(x)|| 	||grad_L(x)|| 	||dx|| 		||dv|| 		delta_A 	delta_W
0   	-1.8465e+00 	0.0000e+00 	1.9015e+00 	 3.8312e-01 	 7.2367e-01 	 0.0000e+00 	 0.0000e+00
1   	-2.3659e+00 	1.4678e-01 	3.3718e-01 	 7.8768e-02 	 7.9620e-02 	 0.0000e+00 	 0.0000e+00
2   	-2.1425e+00 	6.2044e-03 	1.2116e-02 	 3.2309e-03 	 3.9114e-03 	 0.0000e+00 	 0.0000e+00
3   	-2.1324e+00 	1.0439e-05 	2.4821e-05 	 5.3713e-06 	 9.2590e-06 	 0.0000e+00 	 0.0000e+00
4   	-2.1323e+00 	2.8850e-11 	6.2804e-10 	 6.6450e-11 	 2.6422e-10 	 0.0000e+00 	 0.0000e+00

x* = [0.24215301 0.97023807]

v* = [1.64012794]

theta* = 1.3262120357381408 = 1.3262120357381406

# Analytic checks at the last appended point; original algorithm is unchanged.
xr = np.asarray(results[0][-1], dtype=float)
vr = np.asarray(results[1][-1], dtype=float)
gf = np.array([3*xr[0]**2-xr[1], -1-xr[0]-2*xr[1]])
Jr = np.array([2*xr]); hr = np.array([xr@xr-1])
Wr = np.array([[6*xr[0],-1.0],[-1.0,-2.0]]) + 2*vr[0]*np.eye(2)
Zr = np.array([-xr[1],xr[0]])/np.linalg.norm(xr)
print("Final tangent curvature:", Zr@Wr@Zr)
print("Angle from atan2:", np.arctan2(xr[1],xr[0]) % (2*np.pi))
print("Last-point feasibility infinity norm:", np.linalg.norm(hr, np.inf))
print("Last-point stationarity infinity norm:", np.linalg.norm(gf+Jr.T@vr, np.inf))

Final tangent curvature: 5.000593598281122
Angle from atan2: 1.3262120357381408
Last-point feasibility infinity norm: 1.1102230246251565e-16
Last-point stationarity infinity norm: 2.501550078193304e-10

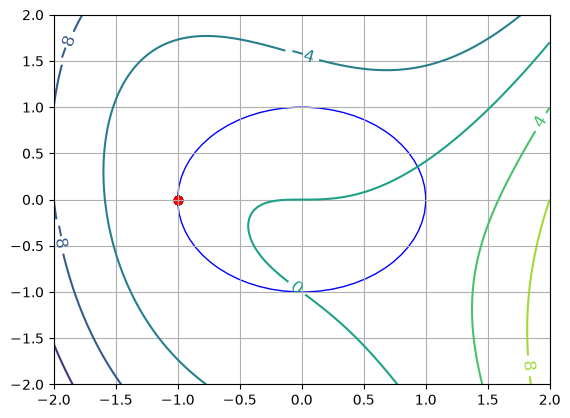

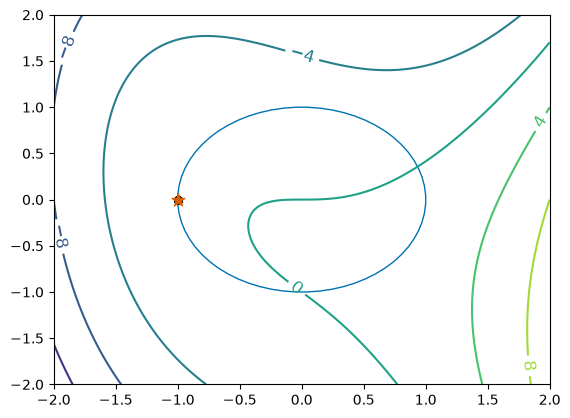

Starting Point Near Local Min ( $\theta_0 = \pi$ )¶

theta0 = np.pi
x0 = np.array((np.cos(theta0), np.sin(theta0)))

## Run Algorithm 5.2 on test problem
results = alg52(x0, my_f3, my_h3)

## Display results
xstar = results[0][-1]
print("\nx* =", xstar)

## Display results
vstar = results[1][-1]
print("\nv* =", vstar)

## Convert into theta
print("\ntheta* =", np.arccos(xstar[0]), "(using arccos)")
print("\ntheta* =", np.arcsin(xstar[1]), "(using arcsin)")

## Visualize
visualize(results[0])

Iter. 	f(x) 		||h(x)|| 	||grad_L(x)|| 	||dx|| 		||dv|| 		delta_A 	delta_W
0   	-1.0000e+00 	0.0000e+00 	1.0000e+00 	 2.5001e-05 	 5.0001e-01 	 1.0000e-08 	 1.0000e-04
1   	-1.0000e+00 	5.6252e-09 	2.4999e-05 	 2.4999e-05 	 1.2503e-05 	 0.0000e+00 	 0.0000e+00
2   	-1.0000e+00 	6.2494e-10 	2.0651e-09 	 2.0023e-09 	 2.0682e-09 	 0.0000e+00 	 0.0000e+00

x* = [-1.00000000e+00  8.19937667e-11]

v* = [1.5]

theta* = 3.141592653589793 (using arccos)

theta* = 8.199376671710346e-11 (using arcsin)

# Analytic checks at the last appended point; original algorithm is unchanged.
xr = np.asarray(results[0][-1], dtype=float)
vr = np.asarray(results[1][-1], dtype=float)
gf = np.array([3*xr[0]**2-xr[1], -1-xr[0]-2*xr[1]])
Jr = np.array([2*xr]); hr = np.array([xr@xr-1])
Wr = np.array([[6*xr[0],-1.0],[-1.0,-2.0]]) + 2*vr[0]*np.eye(2)
Zr = np.array([-xr[1],xr[0]])/np.linalg.norm(xr)
print("Final tangent curvature:", Zr@Wr@Zr)
print("Angle from atan2:", np.arctan2(xr[1],xr[0]) % (2*np.pi))
print("Last-point feasibility infinity norm:", np.linalg.norm(hr, np.inf))
print("Last-point stationarity infinity norm:", np.linalg.norm(gf+Jr.T@vr, np.inf))

Final tangent curvature: 0.9999999997280731
Angle from atan2: 3.1415926535077996
Last-point feasibility infinity norm: 0.0
Last-point stationarity infinity norm: 8.199376670825309e-11

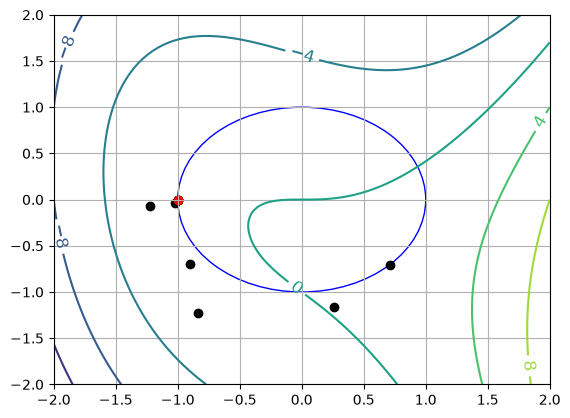

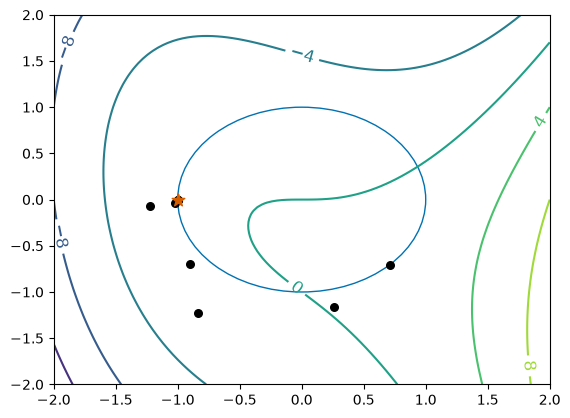

Starting Point Near Global Max ( $\theta_0 = 5.5$ )¶

theta0 = 5.5
x0 = np.array((np.cos(theta0), np.sin(theta0)))

## Run Algorithm 5.2 on test problem
results = alg52(x0, my_f3, my_h3)

## Display results
xstar = results[0][-1]
print("\nx* =", xstar)

## Display results
vstar = results[1][-1]
print("\nv* =", vstar)

## Convert into theta
print("\ntheta* =", np.arccos(xstar[0]), "(using arccos)")
print("\ntheta* =", np.arcsin(xstar[1]), "(using arcsin)")

## Visualize
visualize(results[0])

Iter. 	f(x) 		||h(x)|| 	||grad_L(x)|| 	||dx|| 		||dv|| 		delta_A 	delta_W
0   	 1.0637e+00 	0.0000e+00 	4.0116e+00 	 6.3909e-01 	 8.9136e-01 	 0.0000e+00 	 0.0000e+00
1   	 1.3218e-01 	4.0844e-01 	1.6281e+00 	 1.0969e+00 	 8.7287e-01 	 0.0000e+00 	 0.0000e+00
2   	-1.8894e+00 	1.2033e+00 	1.6888e+00 	 5.3584e-01 	 6.8040e-01 	 0.0000e+00 	 3.2768e+00
3   	-1.1341e+00 	2.8713e-01 	1.0279e+00 	 7.0356e-01 	 9.4021e-02 	 0.0000e+00 	 0.0000e+00
4   	-1.8391e+00 	4.9500e-01 	2.7810e-01 	 2.0378e-01 	 2.2458e-01 	 0.0000e+00 	 0.0000e+00
5   	-1.0630e+00 	4.1526e-02 	3.4498e-02 	 3.6578e-02 	 2.9119e-02 	 0.0000e+00 	 0.0000e+00
6   	-1.0020e+00 	1.3380e-03 	1.8083e-03 	 2.5371e-03 	 2.2187e-03 	 0.0000e+00 	 0.0000e+00
7   	-1.0000e+00 	6.4371e-06 	1.0840e-05 	 1.4321e-05 	 1.2544e-05 	 0.0000e+00 	 0.0000e+00
8   	-1.0000e+00 	2.0510e-10 	1.5464e-09 	 1.5493e-09 	 1.2043e-09 	 0.0000e+00 	 0.0000e+00

x* = [-1.00000000e+00  9.94196533e-11]

v* = [1.5]

theta* = 3.141592653589793 (using arccos)

theta* = 9.941965334980887e-11 (using arcsin)

# Analytic checks at the last appended point; original algorithm is unchanged.
xr = np.asarray(results[0][-1], dtype=float)
vr = np.asarray(results[1][-1], dtype=float)
gf = np.array([3*xr[0]**2-xr[1], -1-xr[0]-2*xr[1]])
Jr = np.array([2*xr]); hr = np.array([xr@xr-1])
Wr = np.array([[6*xr[0],-1.0],[-1.0,-2.0]]) + 2*vr[0]*np.eye(2)
Zr = np.array([-xr[1],xr[0]])/np.linalg.norm(xr)
print("Final tangent curvature:", Zr@Wr@Zr)
print("Angle from atan2:", np.arctan2(xr[1],xr[0]) % (2*np.pi))
print("Last-point feasibility infinity norm:", np.linalg.norm(hr, np.inf))
print("Last-point stationarity infinity norm:", np.linalg.norm(gf+Jr.T@vr, np.inf))

Final tangent curvature: 0.9999999995647781
Angle from atan2: 3.1415926534903735
Last-point feasibility infinity norm: 0.0
Last-point stationarity infinity norm: 1.3696288547748736e-10

Reference: Sylvester, the KKT signature, and regularization¶

The inertia of a real symmetric matrix is $(n_+,n_-,n_0)$ , counting positive, negative and zero eigenvalues. The spectral theorem supplies an orthonormal eigenbasis. For nonsingular $\mathbf S\in\mathbb R^{n\times n}$ , $\mathbf{S}^T\mathbf{BS}$ and $\mathbf{B}$ have the same inertia. This congruence changes coordinates in the quadratic form; it need not preserve eigenvalue magnitudes. Biegler, Theorem 5.2, p. 94.

Proof mechanism. For subspaces $U,V\subset\mathbb R^n$ , $\dim(U\cap V)\ge\dim U+\dim V-n$ because $\dim(U+V)\le n$ . The largest dimension of a subspace on which $\mathbf q^T\mathbf{B}\mathbf q$ is positive definite is $n_+$ : the spectral theorem supplies an $n_+$ -dimensional positive space, and a larger subspace must intersect the nonpositive eigenspace. The invertible map $\mathbf{S}$ preserves dimensions and positive quadratic forms, so that maximum dimension is unchanged. Apply the same argument to $-\mathbf{B}$ for $n_-$ ; the remaining dimension is $n_0$ . This also preserves nonsingularity.

Congruence changes lengths while preserving positive and negative directions

KKT inertia from a reduced block and saddle pairs¶

Let $\mathbf{J}$ have full row rank and choose a null basis $\mathbf{Z}$ and a right-inverse basis $\mathbf{Y}$ with $\mathbf{JY}=\mathbf{I}_m$ . Since $[\mathbf{Z}\ \mathbf{Y}]$ is nonsingular, write $\mathbf d=\mathbf{Z}\mathbf q+\mathbf{Y}\mathbf r$ . The KKT quadratic form is

\mathbf q^T\mathbf{H}_R\mathbf q+2\mathbf q^T\mathbf{G}\mathbf r+\mathbf r^T\mathbf{H}_N\mathbf r+2\mathbf r^T\mathbf v,

(4)

where $\mathbf{H}_R=\mathbf{Z}^T\mathbf{WZ}$ , $\mathbf{G}=\mathbf{Z}^T\mathbf{WY}$ and $\mathbf{H}_N=\mathbf{Y}^T\mathbf{WY}$ . Set $\mathbf v=\widetilde{\mathbf v}-\mathbf{G}^T\mathbf q-\tfrac12\mathbf{H}_N\mathbf r$ ; this is an invertible triangular coordinate change. The form becomes $\mathbf q^T\mathbf{H}_R\mathbf q+2\mathbf r^T\widetilde{\mathbf v}$ . Each normal/multiplier pair has matrix $\left[\begin{smallmatrix}0&1\\1&0\end{smallmatrix}\right]$ with eigenvalues +1 and −1. Therefore

\operatorname{In}\mathbf{K}=\operatorname{In}(\mathbf{Z}^T\mathbf{WZ})+(m,m,0).

(5)

This proves both nonsingularity when the reduced Hessian is nonsingular and the target $(n,m,0)$ when it is positive definite. It includes the zero-dimensional reduced space when $m=n$ . The formula requires full row rank and the unregularized zero dual block. Biegler (5.8)–(5.10), pp. 94–95.

The congruent reduced block and normal/multiplier pairs

For $\mathbf{W}=\operatorname{diag}(2,-2)$ and $\mathbf{J}=[0\ 1]$ , $\mathbf{Z}=(1,0)^T$ gives reduced Hessian 2. The full KKT eigenvalues are $2,-1+\sqrt2,-1-\sqrt2$ , so its inertia is $(2,1,0)$ despite an indefinite primal Hessian.

Existence and limits of a correction¶

For $\delta_A>0$ , eliminate the negative-definite dual block by congruence. Its Schur complement is

\widehat{\mathbf{W}}=\mathbf{W}+\delta_W\mathbf{I}+\delta_A^{-1}\mathbf{J}^T\mathbf{J}.

(6)

Consequently $\operatorname{In}\mathbf K_\delta=\operatorname{In}(\widehat{\mathbf{W}})+(0,m,0)$ . Since $\mathbf{J}^T\mathbf{J}\succeq0$ , choosing $\delta_W$ so $\mathbf{W}+\delta_W\mathbf{I}\succ0$ suffices for the target $(n,m,0)$ , even if $\mathbf{J}$ is rank deficient. For a bounded sequence of $\mathbf{W}$ matrices one uniform sufficiently large shift exists. This is a direct proof of Biegler’s Theorem 5.4, pp. 97–98, in row notation; it avoids requiring an impossible full-column-rank r×m matrix when r<m in the printed proof.

A positive Schur complement plus a negative dual block

With full row rank, $m<n$ and $\delta_A=0$ , an orthonormal $\mathbf{Z}$ gives $\mathbf{Z}^T(\mathbf{W}+\delta_W\mathbf{I})\mathbf{Z}=\mathbf{H}_R+\delta_W\mathbf{I}$ . Thus the threshold is $\delta_W> -\lambda_{\min}(\mathbf{H}_R)$ (with a nonnegative shift); the boundary is singular if the smallest reduced eigenvalue becomes zero. For $m=n$ , the null space has zero dimension and no smallest reduced eigenvalue; the signature identity gives $(n,n,0)$ for every primal shift with zero dual correction. For a nonorthonormal basis use the pair $(\mathbf{H}_R,\mathbf{Z}^T\mathbf{Z})$ rather than this simple eigenvalue shift.

The prepared n=3, m=1 example uses $\mathbf{W}=\left[\begin{smallmatrix}2&1&0\\1&-1&1\\0&1&1\end{smallmatrix}\right]$ , $\mathbf{J}=[1\ 1\ 1]$ , $\delta_A=0$ . Its threshold is approximately 1.5275: below it the inertia is (2,2,0), at it one eigenvalue is zero, and above it the inertia is (3,1,0). These are exact-arithmetic sign conclusions; sufficiently small eigenvalues still need a numerical tolerance.

Dual regularization changes the equality row to $\mathbf{J}\mathbf d_x+h=\delta_A\mathbf d_v$ . It does not impose exact linearized feasibility when $\delta_A\mathbf d_v\ne\mathbf{0}$ . A correct regularized signature does not prove the unregularized reduced Hessian is positive or the original constraints are independent. Check residuals and the physical model, and connect rank diagnosis to Degeneracy Hunter.

Factorization, roundoff, and the existing D4 experiment¶

A pivoted symmetric indefinite factorization has a block-diagonal middle factor with 1×1 or 2×2 blocks. Sylvester’s law lets us count its block eigenvalue signs; a 2×2 block’s two diagonal signs alone are insufficient. This often reuses the factorization needed for the solve, preserving sparse structure better than computing a dense full spectrum. Numerical pivoting, scaling and tolerances still matter. Biegler, p. 97.

The approved Math-Primer D4 experiment stays at that website home. For $\mathbf{W}=2\mathbf{I}_2$ , $\mathbf{J}=\left[\begin{smallmatrix}1&1\\1&1+\varepsilon\end{smallmatrix}\right]$ , every nonzero represented epsilon in the displayed experiment gives an exactly full-rank rational matrix and KKT inertia (2,2,0). Floating-point LDL and eigensolver counts can disagree. If epsilon is so tiny that 1+epsilon rounds to 1, that represented Jacobian really is rank deficient; the exact conclusion then changes.

For the ideal real matrix, a singular value $\sigma$ of $\mathbf{J}$ produces KKT eigenvalues $1\pm\sqrt{1+\sigma^2}$ . The small negative branch is equivalently $-\sigma^2/(1+\sqrt{1+\sigma^2})$ . Since the small singular value is approximately $|\varepsilon|/2$ , that eigenvalue is about $-\varepsilon^2/8$ . Its scale can fall below roundoff in the large matrix even though exact LICQ holds. This explains why a signature measurement can spuriously request a correction, or miss negative curvature. Do not call near-degeneracy an exact CQ failure.

The exact small eigenvalue falls quadratically with row separation

The original implementations are deliberately small teaching routines: dense finite differences, an eigenvalue tolerance and a correction cap. They do not certify a global optimum or enforce every residual in their stopping test. The original redundant-constraint and multiple-stationary-point experiments remain; inspect final feasibility, stationarity and reduced curvature in addition to the printed iteration status.

A numerical sweep of the primal correction¶

The handout’s former sweep uses distinct analytic toy inputs

\mathbf{W}=\begin{bmatrix}2&1&0\\1&-1&1\\0&1&1\end{bmatrix},\qquad \mathbf{J}=(1,1,1),\qquad\delta_A=0.

(7)

For an orthonormal null basis, the lowest reduced eigenvalue is approximately -1.52752523. Hence $\delta_W^*=1.52752523$ is the crossing: below it inertia is $(2,2,0)$ , at it $(2,1,1)$ , and above it $(3,1,0)$ . At shifts 0 and 3, the KKT eigenvalues are approximately $(-1.7520,-0.8698,1.4467,3.1750)$ and $(-0.5656,1.3946,4.3744,5.7966)$ .

The KKT eigenvalue crossing as primal correction grows

The original negative saddle contribution persists; the extra negative eigenvalue from tangent curvature crosses zero. This threshold needs full row rank, zero dual correction, and the orthonormal reduced-Hessian interpretation. With duplicate rows $\mathbf{J}=(1,1,1;2,2,2)$ , a primal correction alone leaves an exact multiplier-null direction for every shift. Positive dual regularization removes that forced null direction, but the curvature correction must still be chosen appropriately. The plot source applies only these toy inputs; it does not reproduce the notebook’s solver trajectory.
