Prepared by: William Bartel (wbartel@nd.edu, 2024) and Andrew Brooks (abrooks7@nd.edu, 2024). Adapted from material by Prof. Alexander Dowling and Elvis Eugene at the University of Notre Dame
Learning Objectives¶
Understanding the generation of random sudoku puzzles
Learning how to formulate sudokus as an optimization problem

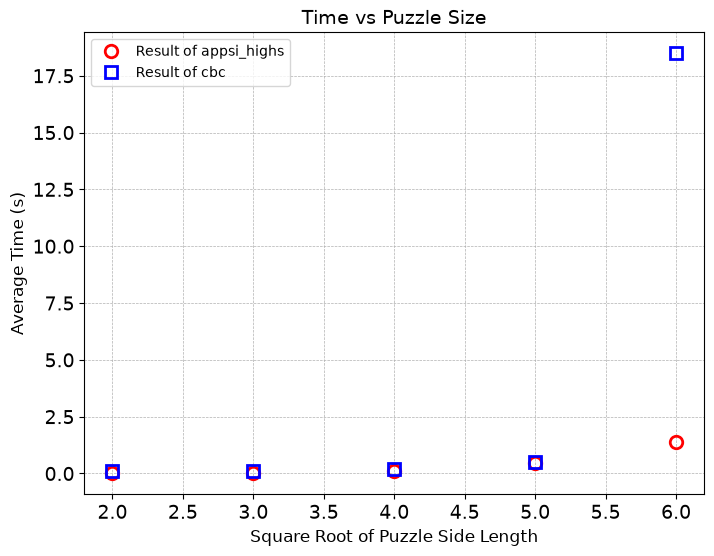

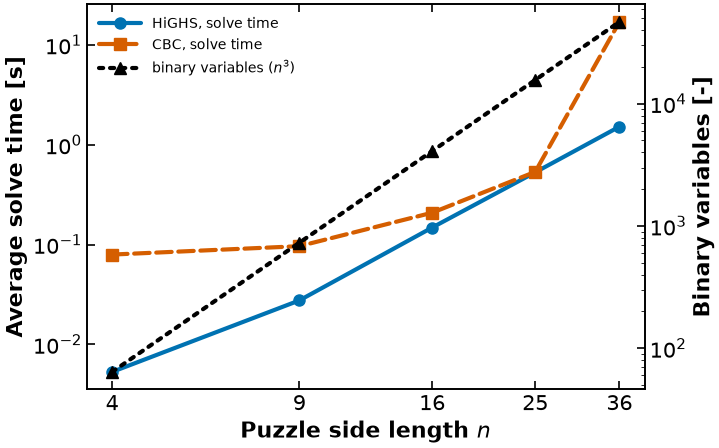

Computing average time to solve sudokus
Learning how to make graph visualizations
Imports¶
# This code cell installs packages on Colab
import sys
if "google.colab" in sys.modules:
!wget "https://raw.githubusercontent.com/ndcbe/optimization/main/notebooks/helper.py"
import helper
helper.easy_install()
else:
sys.path.insert(0, "../")
import helper
helper.set_plotting_style()
# Import Libraries
import pyomo.environ as pyo
import matplotlib.pyplot as plt
import numpy as np
import math
import random
from itertools import product
import time as timeTool
import csv
# Seed the random number generator so this notebook is reproducible
# (Pyomo style guide, section 8).
random.seed(0)Defining Sudoku Puzzles¶

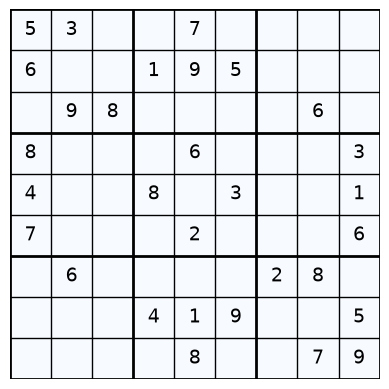

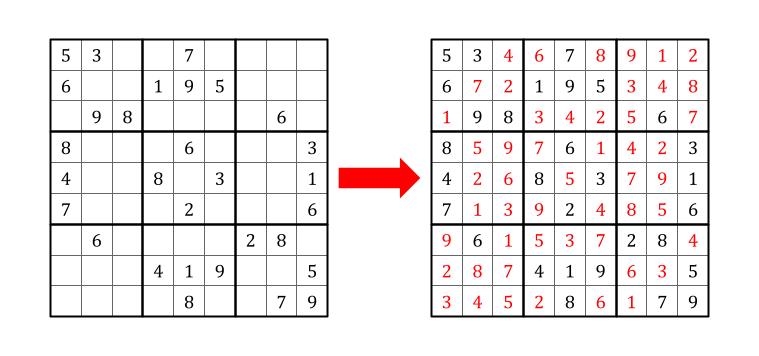

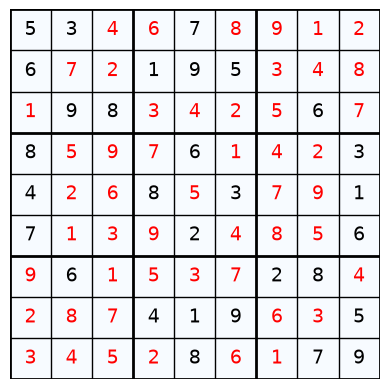

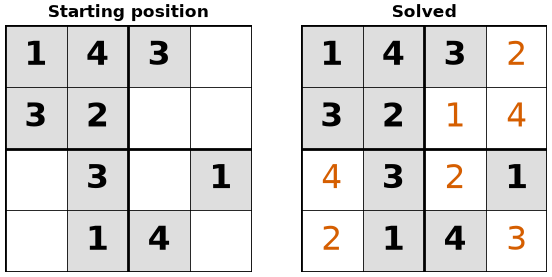

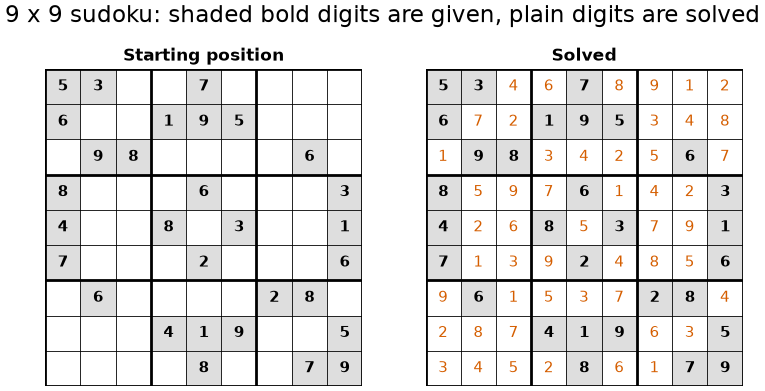

Sudoku puzzles are one of the most widely known logical puzzles. The rules of a sudoku puzzle are simple. For an puzzle, each row, each column, and each subsquare must have exactly one of each number 1 through . One can look at the numbers given in the puzzle and use logic to conclude which squares must contain which numbers. An example puzzle is shown below.
Formulating an Optimization Problem for Puzzle¶
Sets:
Rows
Columns
Values
Subgrids
Parameters:
is value present in box located at from unsolved puzzle for . (Binary)
coordinate pairs for the boxes in each subgrid for
Variables:
is value present in box located at when creating solved puzzle for . (Binary)
Objective:
Constraints:
Because the problem is a feasibility problem and there is only one possible answer, no objective is needed and thus the objective is a constant, in this case 0.
The constraints are described as follows:
There can only be one instance of each possible value in each row.
There can only be one instance of each possible value in each column.
There can only be one instance of each possible value in each subgrid.
There can only be one value in each square.
Each value given by the unsolved puzzle must be the same in the solved puzzle.
# Define class 'Puzzle' to store an unsolved or solved sudoku board
# Stores size of puzzle, grid values, and subgrid coordinates
class Puzzle:
def __init__(self, board):
n = len(board[0])
l = int(math.sqrt(n))
# n = number of rows = number of columns
self.size = n
self.grid = board
s = {}
for v in range(1, n + 1):
for r in range(1, n + 1):
for c in range(1, n + 1):
# Access board elements safely
if board[r - 1][c - 1] == v:
s[(v, r, c)] = 1
else:
s[(v, r, c)] = 0
# s[(v,r,c)] = 1 if the cell in position (r,c) has value v
# s[(v,r,c)] = 0 otherwise
# Note: rows and columns begin at 1 and end at n
self.params = s
subgrids = dict()
for i in range(1, n + 1):
subgrids[i] = [
(r, c)
for r in range(1 + l * ((i - 1) % l), 1 + l * ((i - 1) % l + 1))
for c in range(
1 + l * int(math.floor((i - 1) / l)),
1 + l * int(math.floor((i - 1) / l) + 1),
)
]
# subgrids[i] = collection of ordered pairs (r,c) such that (r,c) is in the i-th subgrid
# subgrids are sqrt(n) by sqrt(n) grids and are indexed top to bottom, then left to right
self.subgrids = subgridsGenerating Sudoku Datasets¶
To generate random sudoku puzzles, we developed a method. First, we stored a solved sudoku puzzle for as a starting point for developing a random sudoku puzzle. Next, to develop a random solved sudoku puzzle, we randomly scrambled the rows and columns of the initial puzzle.

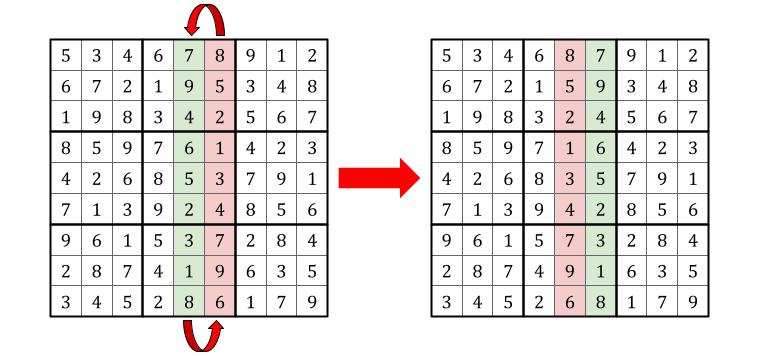

Selecting two random columns that pass through the same subgrids, we can interchange the columns while preserving the rules of a solved sudoku. We can similarly permute rows that pass through the same subgrids. Additionally, we can select columns that all pass through the same subgrids and interchange them with columns that all pass through the same (but different than the first) subgrids.
Random Sudoku Generator¶
# Define initial solved sudoku puzzles of sizes 4,9,16,25,36
# These puzzles will be scrambled to generate random puzzles
initial_puzzles = []
initial_puzzles.append(Puzzle([[1, 2, 3, 4], [3, 4, 1, 2], [4, 1, 2, 3], [2, 3, 4, 1]]))
initial_puzzles.append(
Puzzle(
[
[5, 3, 4, 6, 7, 8, 9, 1, 2],
[6, 7, 2, 1, 9, 5, 3, 4, 8],
[1, 9, 8, 3, 4, 2, 5, 6, 7],
[8, 5, 9, 7, 6, 1, 4, 2, 3],
[4, 2, 6, 8, 5, 3, 7, 9, 1],
[7, 1, 3, 9, 2, 4, 8, 5, 6],
[9, 6, 1, 5, 3, 7, 2, 8, 4],
[2, 8, 7, 4, 1, 9, 6, 3, 5],
[3, 4, 5, 2, 8, 6, 1, 7, 9],
]
)
)
initial_puzzles.append(
Puzzle(
[
[5, 7, 12, 3, 9, 11, 14, 10, 1, 15, 13, 2, 8, 6, 16, 4],
[1, 9, 11, 15, 2, 3, 13, 12, 6, 8, 16, 4, 14, 10, 7, 5],
[6, 10, 14, 16, 4, 8, 5, 1, 11, 3, 7, 12, 15, 9, 2, 13],
[4, 8, 2, 13, 16, 7, 6, 15, 14, 10, 5, 9, 3, 1, 11, 12],
[11, 15, 10, 12, 3, 2, 16, 13, 7, 6, 9, 8, 5, 4, 1, 14],
[16, 14, 9, 7, 12, 1, 11, 6, 15, 2, 4, 5, 10, 8, 13, 3],
[8, 2, 3, 4, 15, 5, 10, 7, 16, 1, 14, 13, 11, 12, 6, 9],
[13, 1, 6, 5, 14, 9, 4, 8, 12, 11, 10, 3, 16, 7, 15, 2],
[15, 11, 5, 2, 10, 14, 12, 9, 13, 4, 1, 16, 7, 3, 8, 6],
[12, 6, 7, 9, 13, 16, 8, 3, 5, 14, 11, 10, 1, 2, 4, 15],
[14, 3, 13, 1, 6, 4, 7, 11, 8, 9, 2, 15, 12, 5, 10, 16],
[10, 4, 16, 8, 5, 15, 1, 2, 3, 12, 6, 7, 9, 13, 14, 11],
[9, 12, 8, 10, 7, 6, 3, 4, 2, 16, 15, 11, 13, 14, 5, 1],
[7, 16, 15, 6, 1, 12, 9, 5, 4, 13, 8, 14, 2, 11, 3, 10],
[2, 13, 1, 11, 8, 10, 15, 14, 9, 5, 3, 6, 4, 16, 12, 7],
[3, 5, 4, 14, 11, 13, 2, 16, 10, 7, 12, 1, 6, 15, 9, 8],
]
)
)
initial_puzzles.append(
Puzzle(
[
[
1,
2,
3,
4,
5,
6,
7,
8,
9,
10,
11,
12,
13,
14,
15,
16,
17,
18,
19,
20,
21,
22,
23,
24,
25,
],
[
11,
12,
13,
14,
15,
1,
2,
3,
4,
5,
16,
17,
18,
19,
20,
22,
23,
21,
24,
25,
6,
7,
8,
9,
10,
],
[
6,
7,
8,
9,
10,
24,
25,
22,
21,
23,
1,
2,
3,
4,
5,
11,
12,
13,
14,
15,
16,
17,
18,
19,
20,
],
[
23,
22,
21,
25,
24,
16,
17,
18,
19,
20,
6,
7,
8,
9,
10,
1,
2,
3,
4,
5,
11,
12,
13,
14,
15,
],
[
16,
17,
18,
19,
20,
11,
12,
13,
14,
15,
24,
21,
23,
22,
25,
6,
7,
8,
9,
10,
1,
2,
3,
4,
5,
],
[
3,
1,
5,
2,
14,
19,
16,
20,
7,
11,
18,
15,
21,
24,
23,
8,
10,
25,
22,
12,
4,
9,
17,
13,
6,
],
[
4,
8,
10,
6,
18,
3,
1,
23,
24,
2,
13,
22,
25,
12,
14,
9,
16,
19,
11,
17,
5,
15,
20,
21,
7,
],
[
24,
15,
25,
7,
12,
4,
5,
9,
13,
6,
3,
1,
16,
17,
2,
18,
20,
14,
21,
23,
8,
10,
22,
11,
19,
],
[
9,
19,
11,
20,
21,
8,
22,
25,
17,
14,
4,
5,
10,
7,
6,
3,
1,
15,
13,
2,
18,
24,
16,
12,
23,
],
[
13,
23,
17,
22,
16,
10,
15,
21,
18,
12,
8,
9,
20,
11,
19,
4,
5,
24,
7,
6,
3,
1,
14,
25,
2,
],
[
2,
5,
1,
15,
3,
14,
13,
17,
25,
8,
23,
16,
19,
10,
18,
12,
24,
11,
20,
9,
7,
4,
21,
6,
22,
],
[
7,
16,
6,
11,
4,
2,
18,
1,
5,
3,
12,
24,
17,
8,
22,
14,
21,
23,
10,
13,
20,
25,
19,
15,
9,
],
[
12,
25,
23,
21,
8,
7,
4,
6,
11,
9,
2,
20,
1,
5,
3,
17,
15,
22,
18,
19,
14,
13,
24,
10,
16,
],
[
14,
20,
19,
24,
9,
22,
23,
10,
16,
21,
7,
4,
6,
15,
13,
2,
25,
1,
5,
3,
12,
8,
11,
17,
18,
],
[
17,
10,
22,
18,
13,
12,
24,
15,
20,
19,
14,
25,
11,
21,
9,
7,
4,
6,
8,
16,
2,
23,
1,
5,
3,
],
[
19,
6,
4,
1,
2,
25,
21,
11,
12,
24,
20,
18,
9,
23,
8,
15,
14,
16,
17,
22,
10,
5,
7,
3,
13,
],
[
5,
13,
9,
3,
7,
17,
8,
2,
1,
4,
22,
19,
24,
25,
11,
10,
18,
20,
23,
21,
15,
6,
12,
16,
14,
],
[
15,
18,
20,
23,
17,
5,
6,
7,
3,
16,
10,
14,
2,
1,
4,
19,
13,
9,
12,
24,
22,
21,
25,
8,
11,
],
[
22,
14,
12,
16,
11,
18,
10,
19,
15,
13,
5,
6,
7,
3,
21,
25,
8,
2,
1,
4,
17,
20,
9,
23,
24,
],
[
10,
21,
24,
8,
25,
20,
9,
14,
23,
22,
15,
13,
12,
16,
17,
5,
6,
7,
3,
11,
19,
18,
2,
1,
4,
],
[
18,
3,
2,
5,
1,
15,
20,
4,
8,
25,
17,
10,
22,
13,
24,
23,
11,
12,
16,
14,
9,
19,
6,
7,
21,
],
[
25,
4,
7,
13,
6,
9,
3,
16,
2,
1,
19,
23,
14,
20,
12,
21,
22,
10,
15,
8,
24,
11,
5,
18,
17,
],
[
20,
11,
15,
12,
19,
23,
14,
5,
6,
7,
21,
3,
4,
2,
1,
24,
9,
17,
25,
18,
13,
16,
10,
22,
8,
],
[
8,
9,
16,
17,
22,
21,
19,
24,
10,
18,
25,
11,
5,
6,
7,
13,
3,
4,
2,
1,
23,
14,
15,
20,
12,
],
[
21,
24,
14,
10,
23,
13,
11,
12,
22,
17,
9,
8,
15,
18,
16,
20,
19,
5,
6,
7,
25,
3,
4,
2,
1,
],
]
)
)
initial_puzzles.append(
Puzzle(
[
[
31,
32,
33,
34,
35,
36,
25,
26,
27,
28,
29,
30,
19,
20,
21,
22,
23,
24,
13,
14,
15,
16,
17,
18,
7,
8,
9,
10,
11,
12,
1,
2,
3,
4,
5,
6,
],
[
1,
2,
3,
4,
5,
6,
31,
32,
33,
34,
35,
36,
25,
26,
27,
28,
29,
30,
19,
20,
21,
22,
23,
24,
13,
14,
15,
16,
17,
18,
7,
8,
9,
10,
11,
12,
],
[
7,
8,
9,
10,
11,
12,
1,
2,
3,
4,
5,
6,
31,
32,
33,
34,
35,
36,
25,
26,
27,
28,
29,
30,
19,
20,
21,
22,
23,
24,
13,
14,
15,
16,
17,
18,
],
[
13,
14,
15,
16,
17,
18,
7,
8,
9,
10,
11,
12,
1,
2,
3,
4,
5,
6,
31,
32,
33,
34,
35,
36,
25,
26,
27,
28,
29,
30,
19,
20,
21,
22,
23,
24,
],
[
19,
20,
21,
22,
23,
24,
13,
14,
15,
16,
17,
18,
7,
8,
9,
10,
11,
12,
1,
2,
3,
4,
5,
6,
31,
32,
33,
34,
35,
36,
25,
26,
27,
28,
29,
30,
],
[
25,
26,
27,
28,
29,
30,
19,
20,
21,
22,
23,
24,
13,
14,
15,
16,
17,
18,
7,
8,
9,
10,
11,
12,
1,
2,
3,
4,
5,
6,
31,
32,
33,
34,
35,
36,
],
[
32,
33,
34,
35,
36,
1,
26,
27,
28,
29,
30,
31,
20,
21,
22,
23,
24,
25,
14,
15,
16,
17,
18,
19,
8,
9,
10,
11,
12,
13,
2,
3,
4,
5,
6,
7,
],
[
2,
3,
4,
5,
6,
7,
32,
33,
34,
35,
36,
1,
26,
27,
28,
29,
30,
31,
20,
21,
22,
23,
24,
25,
14,
15,
16,
17,
18,
19,
8,
9,
10,
11,
12,
13,
],
[
8,
9,
10,
11,
12,
13,
2,
3,
4,
5,
6,
7,
32,
33,
34,
35,
36,
1,
26,
27,
28,
29,
30,
31,
20,
21,
22,
23,
24,
25,
14,
15,
16,
17,
18,
19,
],
[
14,
15,
16,
17,
18,
19,
8,
9,
10,
11,
12,
13,
2,
3,
4,
5,
6,
7,
32,
33,
34,
35,
36,
1,
26,
27,
28,
29,
30,
31,
20,
21,
22,
23,
24,
25,
],
[
20,
21,
22,
23,
24,
25,
14,
15,
16,
17,
18,
19,
8,
9,
10,
11,
12,
13,
2,
3,
4,
5,
6,
7,
32,
33,
34,
35,
36,
1,
26,
27,
28,
29,
30,
31,
],
[
26,
27,
28,
29,
30,
31,
20,
21,
22,
23,
24,
25,
14,
15,
16,
17,
18,
19,
8,
9,
10,
11,
12,
13,
2,
3,
4,
5,
6,
7,
32,
33,
34,
35,
36,
1,
],
[
33,
34,
35,
36,
1,
2,
27,
28,
29,
30,
31,
32,
21,
22,
23,
24,
25,
26,
15,
16,
17,
18,
19,
20,
9,
10,
11,
12,
13,
14,
3,
4,
5,
6,
7,
8,
],
[
3,
4,
5,
6,
7,
8,
33,
34,
35,
36,
1,
2,
27,
28,
29,
30,
31,
32,
21,
22,
23,
24,
25,
26,
15,
16,
17,
18,
19,
20,
9,
10,
11,
12,
13,
14,
],
[
9,
10,
11,
12,
13,
14,
3,
4,
5,
6,
7,
8,
33,
34,
35,
36,
1,
2,
27,
28,
29,
30,
31,
32,
21,
22,
23,
24,
25,
26,
15,
16,
17,
18,
19,
20,
],
[
15,
16,
17,
18,
19,
20,
9,
10,
11,
12,
13,
14,
3,
4,
5,
6,
7,
8,
33,
34,
35,
36,
1,
2,
27,
28,
29,
30,
31,
32,
21,
22,
23,
24,
25,
26,
],
[
21,
22,
23,
24,
25,
26,
15,
16,
17,
18,
19,
20,
9,
10,
11,
12,
13,
14,
3,
4,
5,
6,
7,
8,
33,
34,
35,
36,
1,
2,
27,
28,
29,
30,
31,
32,
],
[
27,
28,
29,
30,
31,
32,
21,
22,
23,
24,
25,
26,
15,
16,
17,
18,
19,
20,
9,
10,
11,
12,
13,
14,
3,
4,
5,
6,
7,
8,
33,
34,
35,
36,
1,
2,
],
[
34,
35,
36,
1,
2,
3,
28,
29,
30,
31,
32,
33,
22,
23,
24,
25,
26,
27,
16,
17,
18,
19,
20,
21,
10,
11,
12,
13,
14,
15,
4,
5,
6,
7,
8,
9,
],
[
4,
5,
6,
7,
8,
9,
34,
35,
36,
1,
2,
3,
28,
29,
30,
31,
32,
33,
22,
23,
24,
25,
26,
27,
16,
17,
18,
19,
20,
21,
10,
11,
12,
13,
14,
15,
],
[
10,
11,
12,
13,
14,
15,
4,
5,
6,
7,
8,
9,
34,
35,
36,
1,
2,
3,
28,
29,
30,
31,
32,
33,
22,
23,
24,
25,
26,
27,
16,
17,
18,
19,
20,
21,
],
[
16,
17,
18,
19,
20,
21,
10,
11,
12,
13,
14,
15,
4,
5,
6,
7,
8,
9,
34,
35,
36,
1,
2,
3,
28,
29,
30,
31,
32,
33,
22,
23,
24,
25,
26,
27,
],
[
22,
23,
24,
25,
26,
27,
16,
17,
18,
19,
20,
21,
10,
11,
12,
13,
14,
15,
4,
5,
6,
7,
8,
9,
34,
35,
36,
1,
2,
3,
28,
29,
30,
31,
32,
33,
],
[
28,
29,
30,
31,
32,
33,
22,
23,
24,
25,
26,
27,
16,
17,
18,
19,
20,
21,
10,
11,
12,
13,
14,
15,
4,
5,
6,
7,
8,
9,
34,
35,
36,
1,
2,
3,
],
[
35,
36,
1,
2,
3,
4,
29,
30,
31,
32,
33,
34,
23,
24,
25,
26,
27,
28,
17,
18,
19,
20,
21,
22,
11,
12,
13,
14,
15,
16,
5,
6,
7,
8,
9,
10,
],
[
5,
6,
7,
8,
9,
10,
35,
36,
1,
2,
3,
4,
29,
30,
31,
32,
33,
34,
23,
24,
25,
26,
27,
28,
17,
18,
19,
20,
21,
22,
11,
12,
13,
14,
15,
16,
],
[
11,
12,
13,
14,
15,
16,
5,
6,
7,
8,
9,
10,
35,
36,
1,
2,
3,
4,
29,
30,
31,
32,
33,
34,
23,
24,
25,
26,
27,
28,
17,
18,
19,
20,
21,
22,
],
[
17,
18,
19,
20,
21,
22,
11,
12,
13,
14,
15,
16,
5,
6,
7,
8,
9,
10,
35,
36,
1,
2,
3,
4,
29,
30,
31,
32,
33,
34,
23,
24,
25,
26,
27,
28,
],
[
23,
24,
25,
26,
27,
28,
17,
18,
19,
20,
21,
22,
11,
12,
13,
14,
15,
16,
5,
6,
7,
8,
9,
10,
35,
36,
1,
2,
3,
4,
29,
30,
31,
32,
33,
34,
],
[
29,
30,
31,
32,
33,
34,
23,
24,
25,
26,
27,
28,
17,
18,
19,
20,
21,
22,
11,
12,
13,
14,
15,
16,
5,
6,
7,
8,
9,
10,
35,
36,
1,
2,
3,
4,
],
[
36,
1,
2,
3,
4,
5,
30,
31,
32,
33,
34,
35,
24,
25,
26,
27,
28,
29,
18,
19,
20,
21,
22,
23,
12,
13,
14,
15,
16,
17,
6,
7,
8,
9,
10,
11,
],
[
6,
7,
8,
9,
10,
11,
36,
1,
2,
3,
4,
5,
30,
31,
32,
33,
34,
35,
24,
25,
26,
27,
28,
29,
18,
19,
20,
21,
22,
23,
12,
13,
14,
15,
16,
17,
],
[
12,
13,
14,
15,
16,
17,
6,
7,
8,
9,
10,
11,
36,
1,
2,
3,
4,
5,
30,
31,
32,
33,
34,
35,
24,
25,
26,
27,
28,
29,
18,
19,
20,
21,
22,
23,
],
[
18,
19,
20,
21,
22,
23,
12,
13,
14,
15,
16,
17,
6,
7,
8,
9,
10,
11,
36,
1,
2,
3,
4,
5,
30,
31,
32,
33,
34,
35,
24,
25,
26,
27,
28,
29,
],
[
24,
25,
26,
27,
28,
29,
18,
19,
20,
21,
22,
23,
12,
13,
14,
15,
16,
17,
6,
7,
8,
9,
10,
11,
36,
1,
2,
3,
4,
5,
30,
31,
32,
33,
34,
35,
],
[
30,
31,
32,
33,
34,
35,
24,
25,
26,
27,
28,
29,
18,
19,
20,
21,
22,
23,
12,
13,
14,
15,
16,
17,
6,
7,
8,
9,
10,
11,
36,
1,
2,
3,
4,
5,
],
]
)
)The scramble_cols function, for instance, swaps two random columns that pass through the same subgrids.
# Scrambling algorithms to create a random solved sudoku
# Random selection of squares are selected to be deleted to form
# an unsolved sudoku puzzle
def scramble_rows(puzzle, n):
a = random.randint(0, n - 1)
b = random.randint(0, n - 1)
c = random.randint(0, n - 1)
while c == b:
c = random.randint(0, n - 1)
temp = puzzle[a * n + b]
puzzle[a * n + b] = puzzle[a * n + c]
puzzle[a * n + c] = temp
return puzzle
def swap_row_groups(puzzle, n):
a = random.randint(0, n - 1)
b = random.randint(0, n - 1)
while a == b:
b = random.randint(0, n - 1)
for i in range(0, n):
temp = puzzle[a * n + i]
puzzle[a * n + i] = puzzle[b * n + i]
puzzle[b * n + i] = temp
return puzzle
def scramble_cols(puzzle, n):
a = random.randint(0, n - 1)
b = random.randint(0, n - 1)
c = random.randint(0, n - 1)
while c == b:
c = random.randint(0, n - 1)
temp = []
for i in range(0, n**2):
temp.append(puzzle[i][a * n + b])
for i in range(0, n**2):
puzzle[i][a * n + b] = puzzle[i][a * n + c]
puzzle[i][a * n + c] = temp[i]
return puzzle
def swap_col_groups(puzzle, n):
a = random.randint(0, n - 1)
b = random.randint(0, n - 1)
while a == b:
b = random.randint(0, n - 1)
for i in range(0, n):
temp = []
for j in range(0, n**2):
temp.append(puzzle[j][a * n + i])
puzzle[j][a * n + i] = puzzle[j][b * n + i]
puzzle[j][b * n + i] = temp[j]
return puzzle
def scramble_puzzle(puzzle, n):
# k = number of scrambles to perform to sudoku board
k = random.randint(1000, 1100)
for i in range(0, k):
d = random.randint(0, 5)
if d == 0:
puzzle = swap_col_groups(puzzle, n)
elif d == 1:
puzzle = swap_row_groups(puzzle, n)
elif d <= 3:
puzzle = scramble_rows(puzzle, n)
else:
puzzle = scramble_cols(puzzle, n)
return puzzle
def generate_puzzle(puzzle, size):
# Converts solved puzzle to unsolved puzzle by converting squares to blank squares
# Number of squares to convert into blanks depends on size of puzzle
if size == 4:
blanks = random.randint(7, 9)
elif size == 9:
blanks = random.randint(31, 45)
elif size == 16:
blanks = random.randint(90, 120)
elif size == 25:
blanks = random.randint(226, 275)
elif size == 36:
blanks = random.randint(450, 500)
else:
raise ValueError("Ineligible Puzzle Size")
blank_positions = random.sample(list(product(range(size), range(size))), blanks)
for row, col in blank_positions:
puzzle[row][col] = 0
return puzzleSudoku Writer and Reader Functions¶
The writer/reader functions are designed to transfer sudoku puzzle data to and from a CSV file. The writer creates a file ‘sudoku_puzzles_n.csv’ where is the side length of the puzzles generated (for instance, ). Each row stores a puzzle.
The reader converts the CSV file back to Puzzle objects, reading one row at a time.
# Writes randomly generated sudoku puzzles to CSV file
# File is named 'sudoku_puzzles_n.csv' where n = size of the puzzle
# Default configuration writes 100 randomly generated files
# to CSV file for sizes 4,9,16,25,36
def generate_puzzles(start_puzzle, num_puzzles=100):
puzzles = []
for _ in range(num_puzzles):
# Make a copy of the puzzle
puzzle = [row[:] for row in start_puzzle.grid]
scrambled_puzzle = scramble_puzzle(puzzle, int(math.sqrt(start_puzzle.size)))
puzzle_with_blanks = generate_puzzle(scrambled_puzzle, start_puzzle.size)
puzzles.append(puzzle_with_blanks)
return puzzles
def write_puzzles_to_csv(puzzles, filename):
with open(filename, mode="w", newline="") as file:
writer = csv.writer(file)
for puzzle in puzzles:
# Flatten the puzzle to write as a single row in the CSV file
writer.writerow([cell for row in puzzle for cell in row])
for i in range(0, len(initial_puzzles)):
# Generate 100 puzzles, this number can be modified
puzzles = generate_puzzles(initial_puzzles[i], num_puzzles=100)
# Write the puzzles to a CSV file
write_puzzles_to_csv(puzzles, filename=f"sudoku_puzzles_{(i+2)**2}.csv")# Interpreter that reads puzzles from CSV file
# Function is passed the puzzle size and file name
def read_puzzle_from_csv(size=9, filename="sudoku_puzzles_9.csv", line_number=0):
with open(filename, mode="r") as file:
reader = csv.reader(file)
# Read all lines into a list
lines = list(reader)
# Get the specified line (line_number) and convert it back to a grid
line = lines[line_number]
# Convert the list back to a grid
puzzle = [list(map(int, line[i : i + size])) for i in range(0, len(line), size)]
return puzzle
# Example use of read_puzzle_from_csv
# Reads the first puzzle from the 9 by 9 CSV file and prints it
puzzle = read_puzzle_from_csv()
print(puzzle)[[3, 2, 0, 0, 8, 1, 0, 0, 7], [1, 0, 0, 7, 2, 6, 3, 0, 0], [6, 8, 0, 3, 0, 5, 9, 0, 0], [2, 6, 8, 4, 0, 3, 1, 7, 9], [4, 0, 0, 0, 0, 0, 0, 3, 0], [5, 0, 3, 6, 1, 9, 0, 0, 4], [8, 0, 5, 2, 0, 0, 7, 9, 1], [9, 4, 2, 0, 0, 7, 8, 5, 6], [7, 1, 6, 0, 0, 8, 0, 0, 3]]
Sudoku Optimization Solver¶
Below is the optimization formulation to solve a sudoku puzzle. The formulation was described earlier.
# Optimization solver
def sudokuSolver(puzzle, solver, printer):
model = pyo.ConcreteModel()
n = puzzle.size
subgridSize = int(math.sqrt(n))
# Define sets
# V = values, R = rows, C = columns, K = subgrid indices
V = range(1, n + 1)
R = range(1, n + 1)
C = range(1, n + 1)
K = range(1, n + 1)
s = puzzle.params
subgrids = puzzle.subgrids
# Define decision variable y
# Determines values to fill blank squares
model.y = pyo.Var(V, R, C, domain=pyo.Binary, initialize=0)
# One value per row
@model.Constraint(V, R)
def row_con(b, v, r):
return sum(b.y[v, r, c] for c in C) == 1
# One value per col
@model.Constraint(V, C)
def col_con(b, v, c):
return sum(b.y[v, r, c] for r in R) == 1
# One value per cell
@model.Constraint(R, C)
def val_con(b, r, c):
return sum(b.y[v, r, c] for v in V) == 1
# Values equal params
@model.Constraint(V, R, C)
def param_con(b, v, r, c):
return b.y[v, r, c] * s[v, r, c] == s[v, r, c]
# One value per subgrid
@model.Constraint(V, K)
def subgrid_con(b, v, k):
return sum(b.y[v, r, c] for (r, c) in subgrids[k]) == 1
# No objective
model.obj = pyo.Objective(expr=0)
# Solve the model
solver = pyo.SolverFactory(solver)
results = solver.solve(model, tee=False)
assert pyo.check_optimal_termination(results), (
f"Solve failed: status={results.solver.status}, "
f"termination={results.solver.termination_condition}"
)
# Print solution
if printer:
unsolvedSudokuPrinter(puzzle)
solvedSudokuPrinter(model, puzzle)The printer functions below are designed to print sudoku puzzles in a readable format. The unsolved sudoku puzzle printer prints a sudoku puzzle with the given squares, leaving blank squares where values are not given. The solved sudoku printer prints the unsolved sudoku puzzle with red solution values printed in the blank squares.
# Sudoku puzzle printer
# unsolvedSudokuPrinter prints the unsolved sudoku puzzle
# solvedSudokuPrinter prints the solved sudoku puzzle
def unsolvedSudokuPrinter(puzzle):
fig, ax = plt.subplots()
n = puzzle.size
ax.matshow(np.zeros((n, n)), cmap="Blues", vmin=0, vmax=1)
s = puzzle.params
# Add the numbers to each cell
for i in range(1, n + 1):
for j in range(1, n + 1):
for k in range(1, n + 1):
if s[i, j, k] != 0:
ax.text(k - 1, j - 1, str(i), va="center", ha="center")
# Draw the grid lines
for i in range(n + 1):
lw = 2 if i % math.sqrt(puzzle.size) == 0 else 1
ax.axhline(i - 0.5, color="black", linewidth=lw)
ax.axvline(i - 0.5, color="black", linewidth=lw)
ax.axis("off")
plt.show()
def solvedSudokuPrinter(model, puzzle):
fig, ax = plt.subplots()
n = puzzle.size
ax.matshow(np.zeros((n, n)), cmap="Blues", vmin=0, vmax=1)
s = puzzle.params
# Add the numbers to each cell
for i in range(1, n + 1):
for j in range(1, n + 1):
for k in range(1, n + 1):
if pyo.value(model.y[i, j, k]) >= 0.5:
if s[i, j, k] != 0:
ax.text(
k - 1,
j - 1,
str(i),
va="center",
ha="center",
color="black",
)
else:
ax.text(
k - 1, j - 1, str(i), va="center", ha="center", color="red"
)
# Draw the grid lines
for i in range(n + 1):
lw = 2 if i % math.sqrt(puzzle.size) == 0 else 1
ax.axhline(i - 0.5, color="black", linewidth=lw)
ax.axvline(i - 0.5, color="black", linewidth=lw)
ax.axis("off")
plt.show()# Example use of solver and printer
print("Example of 9 by 9 Sudoku:")
exampleSudoku = Puzzle(
[
[5, 3, 0, 0, 7, 0, 0, 0, 0],
[6, 0, 0, 1, 9, 5, 0, 0, 0],
[0, 9, 8, 0, 0, 0, 0, 6, 0],
[8, 0, 0, 0, 6, 0, 0, 0, 3],
[4, 0, 0, 8, 0, 3, 0, 0, 1],
[7, 0, 0, 0, 2, 0, 0, 0, 6],
[0, 6, 0, 0, 0, 0, 2, 8, 0],
[0, 0, 0, 4, 1, 9, 0, 0, 5],
[0, 0, 0, 0, 8, 0, 0, 7, 9],
]
)
sudokuSolver(exampleSudoku, "appsi_highs", True)
print()
print("Example of 4 by 4 Sudoku:")
exampleSudoku2 = Puzzle([[0, 0, 0, 0], [0, 1, 0, 4], [2, 0, 3, 0], [0, 0, 0, 0]])
sudokuSolver(exampleSudoku2, "appsi_highs", True)Example of 9 by 9 Sudoku:
Example of 4 by 4 Sudoku:
Computing Average Sudoku Solve Times¶
For a given positive integer , let . We are curious how the complexity of solving an sudoku scales. It is fair to hypothesize that the complexity scales at a superlinear rate, given that the number of cells in an sudoku is .
Our goal is to test two solvers (HiGHS and cbc) to determine which solver, if any, is fastest at solving sudokus. The following program reads through the CSV files generated earlier, reading the first 10 lines. The number of lines read can be modified (iterations below), but it is set to 10 by default for a quick computation time.
We test the average solve time for an sudoku for . Again, this list can be modified, as omitting improves computation time. We use the ‘time’ import to compute the average solve time, and we output the results.
# Computes average time to solve sudoku of given size
# Set iterations to a number from 1 to the number of generated puzzles in CSV file (by default can go up to 100)
# Determines how many puzzles to look at to compute average solve time
# Expect up to 3-5 minute runtime for iterations = 100, sizes = [4,9,16,25]
iterations = 10
# Remove 36 from the list for a much faster run
sizes = [4, 9, 16, 25, 36]
solvers = ["appsi_highs", "cbc"]
# List to store values for regression analysis
results = []
for solver in solvers:
averages = []
print("For the solver " + solver + ":")
print()
for size in sizes:
times = []
for i in range(0, iterations):
puzzle = read_puzzle_from_csv(
size, filename=f"sudoku_puzzles_{size}.csv", line_number=i
)
sudoku = Puzzle(puzzle)
# Time import measures time to solve sudoku
start_time = timeTool.time()
sudokuSolver(sudoku, solver, False)
end_time = timeTool.time()
times.append(end_time - start_time)
averages.append(sum(times) / float(iterations))
print(
f"Average Time for {size} by {size} Sudoku: {round(sum(times)/float(iterations),5)}"
)
print()
results.append(averages)For the solver appsi_highs:
Average Time for 4 by 4 Sudoku: 0.00916
Average Time for 9 by 9 Sudoku: 0.03337
Average Time for 16 by 16 Sudoku: 0.12543
Average Time for 25 by 25 Sudoku: 0.45387
Average Time for 36 by 36 Sudoku: 1.37904
For the solver cbc:
Average Time for 4 by 4 Sudoku: 0.08882
Average Time for 9 by 9 Sudoku: 0.10573
Average Time for 16 by 16 Sudoku: 0.20269
Average Time for 25 by 25 Sudoku: 0.49297
Average Time for 36 by 36 Sudoku: 18.4883
The following code graphs the data collected from computing the average solve time. After running this multiple times across many datasets, computing a cubic, quartic, or exponential regression on the data often yields about , suggesting that one of these regressions would fit the data. More datapoints would be needed to determine the exact fit. However, computing average solve times for becomes more and more computationally intensive.
# Graphs the data for average puzzle solve time based on puzzle size
# Calculate square roots of puzzle side lengths
sqrt_sizes = [math.sqrt(size) for size in sizes]
# Create the plot
plt.figure(figsize=(8, 6))
colors = ["r", "b", "g"]
markers = ["o", "s", "^"]
for i in range(0, len(results)):
plt.plot(
sqrt_sizes,
results[i],
marker=markers[i],
linestyle="",
markerfacecolor="none",
markeredgewidth=2,
markersize=9,
color=colors[i],
label=f"Result of {solvers[i]}",
)
# Add labels and title
plt.xlabel("Square Root of Puzzle Side Length", fontsize=12)
plt.ylabel("Average Time (s)", fontsize=12)
plt.title("Time vs Puzzle Size", fontsize=14)
# Add a grid and legend
plt.grid(True, which="both", linestyle="--", linewidth=0.5)
plt.legend(fontsize=10)
# Show the plot
plt.show()
HiGHS is faster than cbc at every size we tested, but for two different reasons at the two ends of the range. On the smallest puzzles the gap is mostly an interface effect rather than a statement about branch-and-bound: appsi_highs builds the problem in memory through the highspy library, whereas cbc is launched as a separate executable and every solve pays a fixed cost to write an LP file and read a solution file back. For the puzzles are easy enough that this fixed cost dominates, and by the search itself dominates and the two solvers are nearly tied. At they separate again, this time by an order of magnitude, and that gap is about the search.
Your timings will differ from ours — they depend on the machine, on the randomly generated puzzles, and on the solver versions. Re-run the cell above before drawing conclusions.
Future work: remake the above figure as a log-log plot. Is the slope 3? The problem size (number of integer decisions) is proportional to .
Conclusion¶
We formulated a sudoku puzzle as an optimization problem, built a function to print solutions, and we analyzed how scaling the sudoku size impacts the average time it takes to solve a puzzle. We expanded upon these requirements, adding a function to randomly generate a dataset of puzzles and functions to read/write these puzzles to CSV files.
There are a few different opportunities to build upon this project. First, a more robust random sudoku generator could be created. Our algorithm for generating random puzzles does not ensure that the puzzle has a unique solution. A backtracking algorithm that ensures the solution is unique could be implemented, but we found this to take too much time. A select number of puzzles could also be generated that require different solving techniques, testing the limits of each solver.
Another area for future work is that, as of right now, it takes too long for colab and our solver to efficiently solve an puzzle for . This could be solved by finding ways to improve the efficiency in our algorithms or to use a faster computer/compiler.
One last area for future work is testing other solvers for this problem. Commercial solvers such as CPLEX, which has an optimized branch-and-bound algorithm, and Gurobi, which has a branch-and-cut algorithm along with other helpful features, are designed to work well with MILP problems of differing sizes and complexities and could be investigated as good solvers for this problem.
In this project, we were able to create an effective sudoku puzzle generator and solver that prints solutions. Furthermore, we tested to show there is a superlinear relationship between problem size and solver time, meaning time grows at a rate faster than the problem size.
